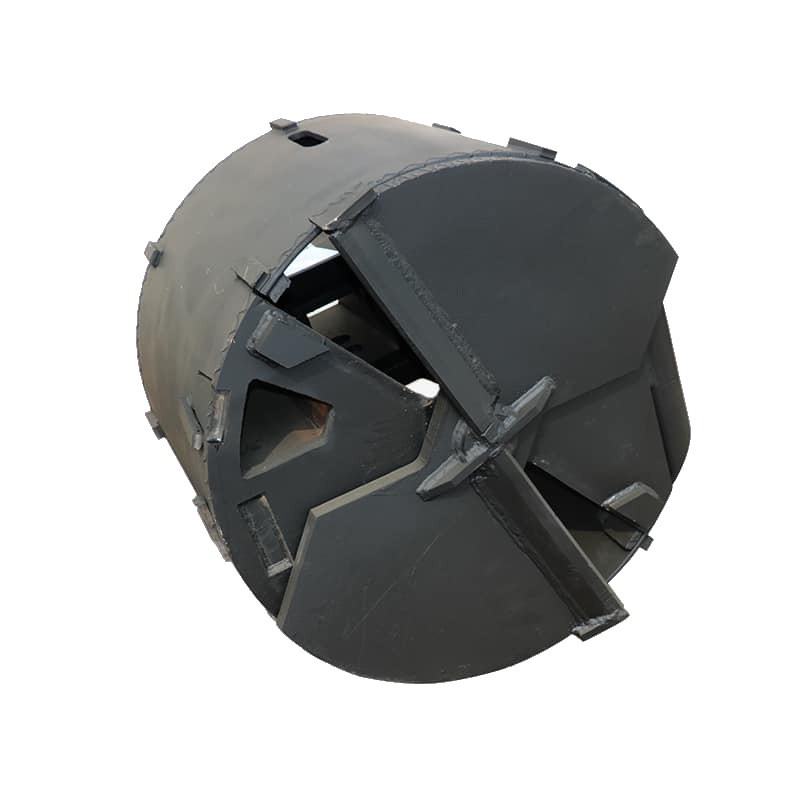

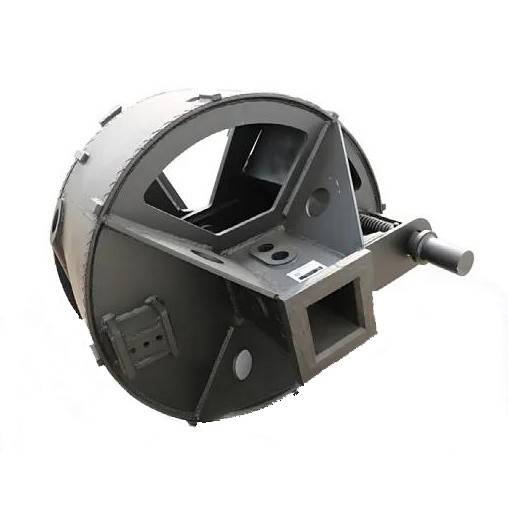

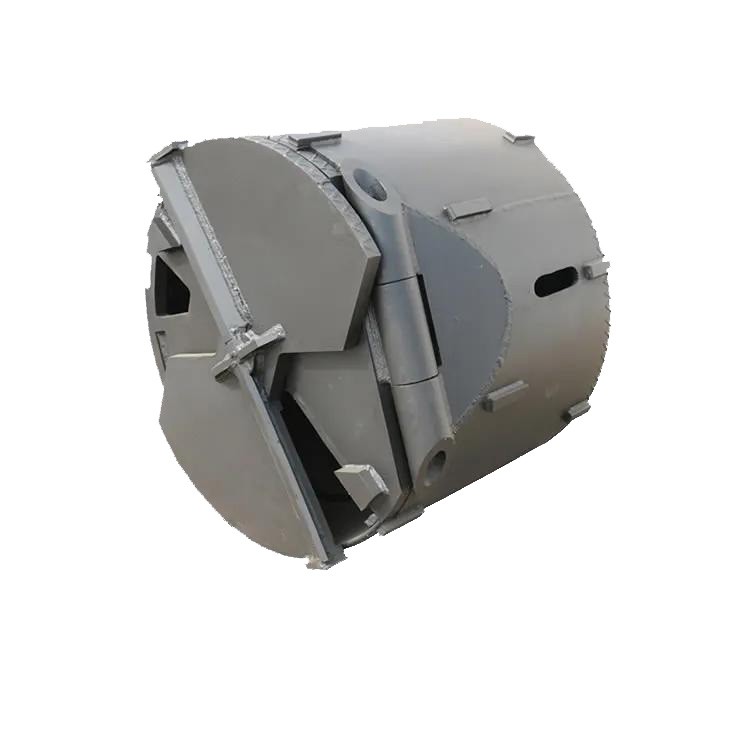

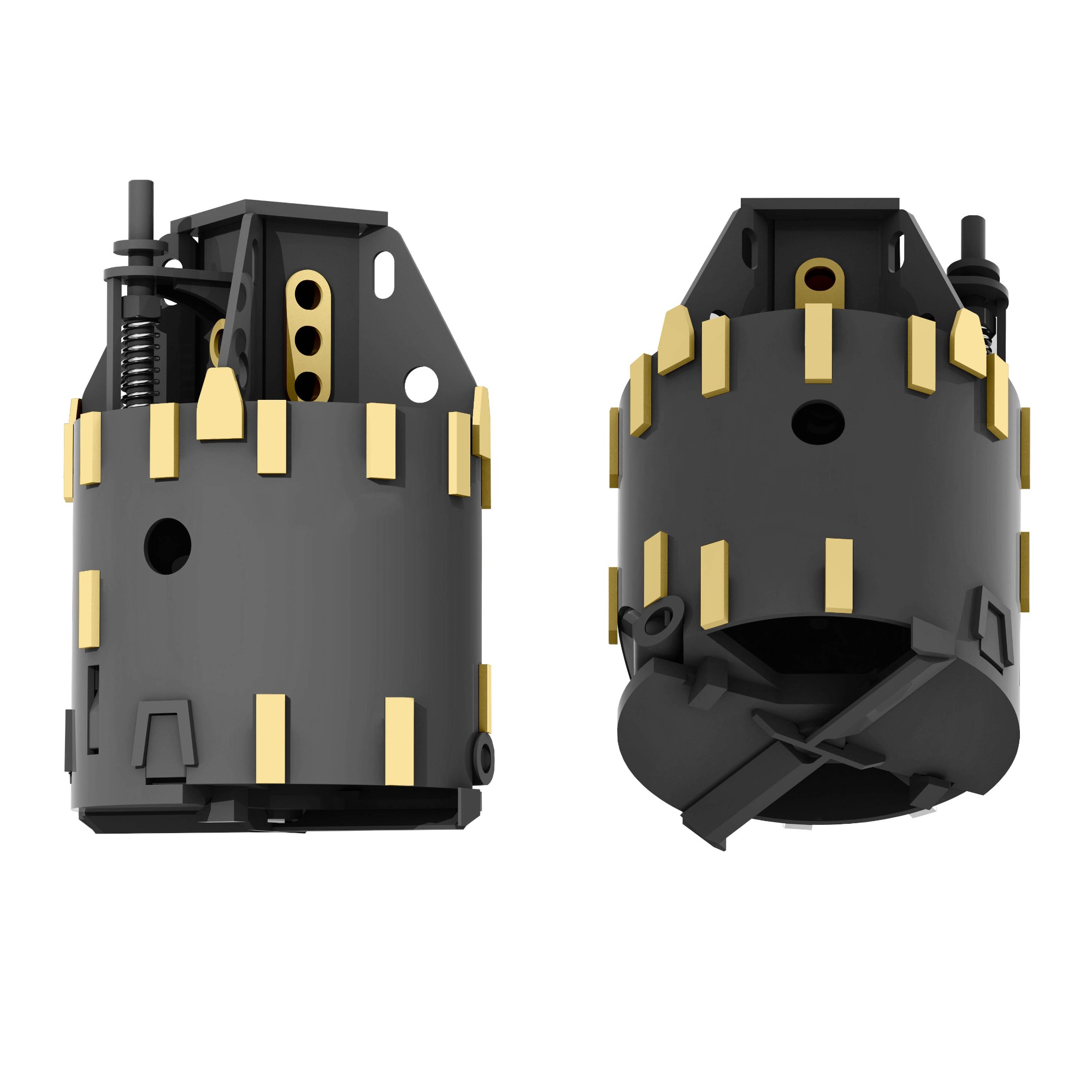

Cleaning bucket for the bored pile

Drilling cleaning bucket

Name: Cleaning bucket, drilling cleaning bucket, cleaning drilling bucket, cleaning out bucket
Type: Straight type cleaning bucket or conical type cleaning bucket
Steel Material: Q355B
Diameter: 600mm to 3000mm, customized according to your requirements
Kelly Box: 110×110, 130×130, 150×150, 200×200, (optional)
Application: For bored pile, Rotary drilling rig, Pile foundation and Piling rig.
Suit with the cleaning spoil at pile bottom, soft layer.

INQUIRY

Product Details

Product Tags

Feature:

1. A cleaning drilling bucket is utilized to clear the sediment at the bottom of a borehole, specifically after completing the drilling work for bored piles.

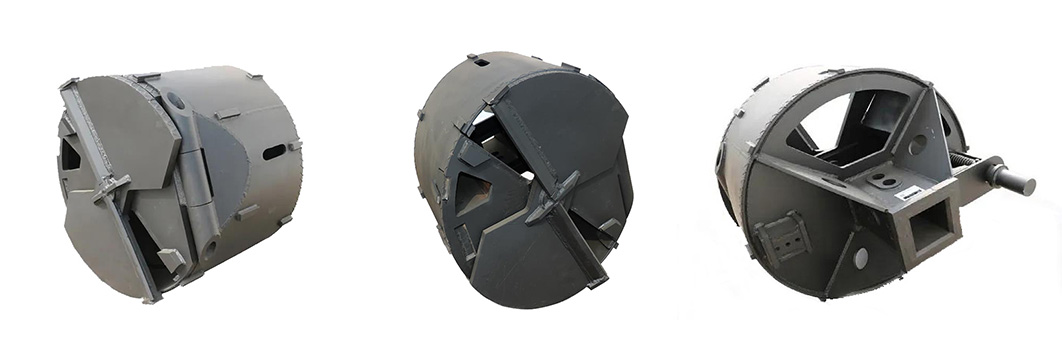

2. Select either conical or straight bucket based on the specific working conditions.

3. The bottom cover, constructed from high-strength manganese (Mn) plate, features cutting edges available in both single-layer and double-layer types.

4. Manual or auto open of bottom optional.

Advantages:

1. Using raw materials from a top-leading raw steel factory ensures the exceptional structural strength of our drilling bucket.

2. Our drilling bucket offers a simple operation, making it much easier for the operator to accomplish the bole drilling job efficiently.

3. We integrate hard-facing strips into our drilling buckets for superior wear protection, ensuring high wear resistance in demanding conditions.

4. The excellent roundness of the cylinder, optimized angle of drilling bits, and strategically placed ventilation holes contribute to higher drilling efficiency in our all drilling buckets.

5. Incorporating double support plate unlocking design and enhanced protection block design, among other patented innovations, our drilling buckets offer advanced features for enhanced performance and durability.

6. With a modern workshop, advanced production equipment, and automated robot welding technology, we guarantee a higher quality standard for our drilling tools, ensuring precision and reliability in every product.

Specification:

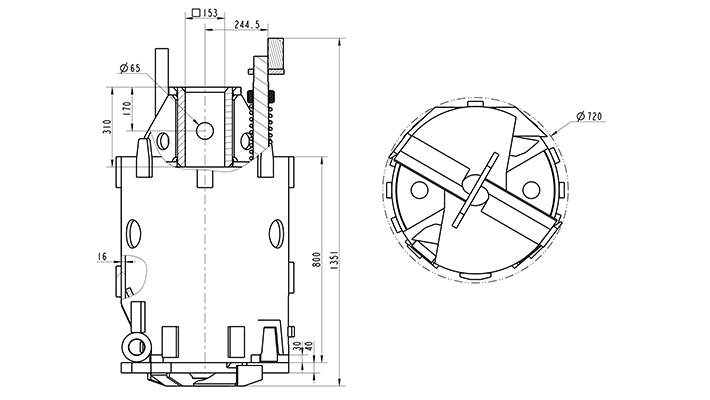

Bottom cleaning bucket.jpg

Pile Diameter （mm）	Shell Height (mm)	Shell Thickness (mm)	Fixed Bottom Thickness (mm)	Rotate Bottom Thickness (mm)	Weight (KG)
⌀ 600	800	16	40	40	550
⌀ 800	800	16	40	40	700
⌀ 900	800	16	40	40	850
⌀ 1000	800	16	40	40	9500
⌀ 1200	800	16	40	40	1200
⌀ 1500	600	16	40	40	1500
⌀ 1600	600	16	40	40	1700
⌀ 1800	600	16	40	50	2450
⌀ 2000	600	20	40	50	3150
⌀ 2200	600	20	40	50	3500
⌀ 2500	600	25	40	50	4500
⌀ 2800	600	25	40	50	5150
⌀ 3000	600	25	40	50	6150
