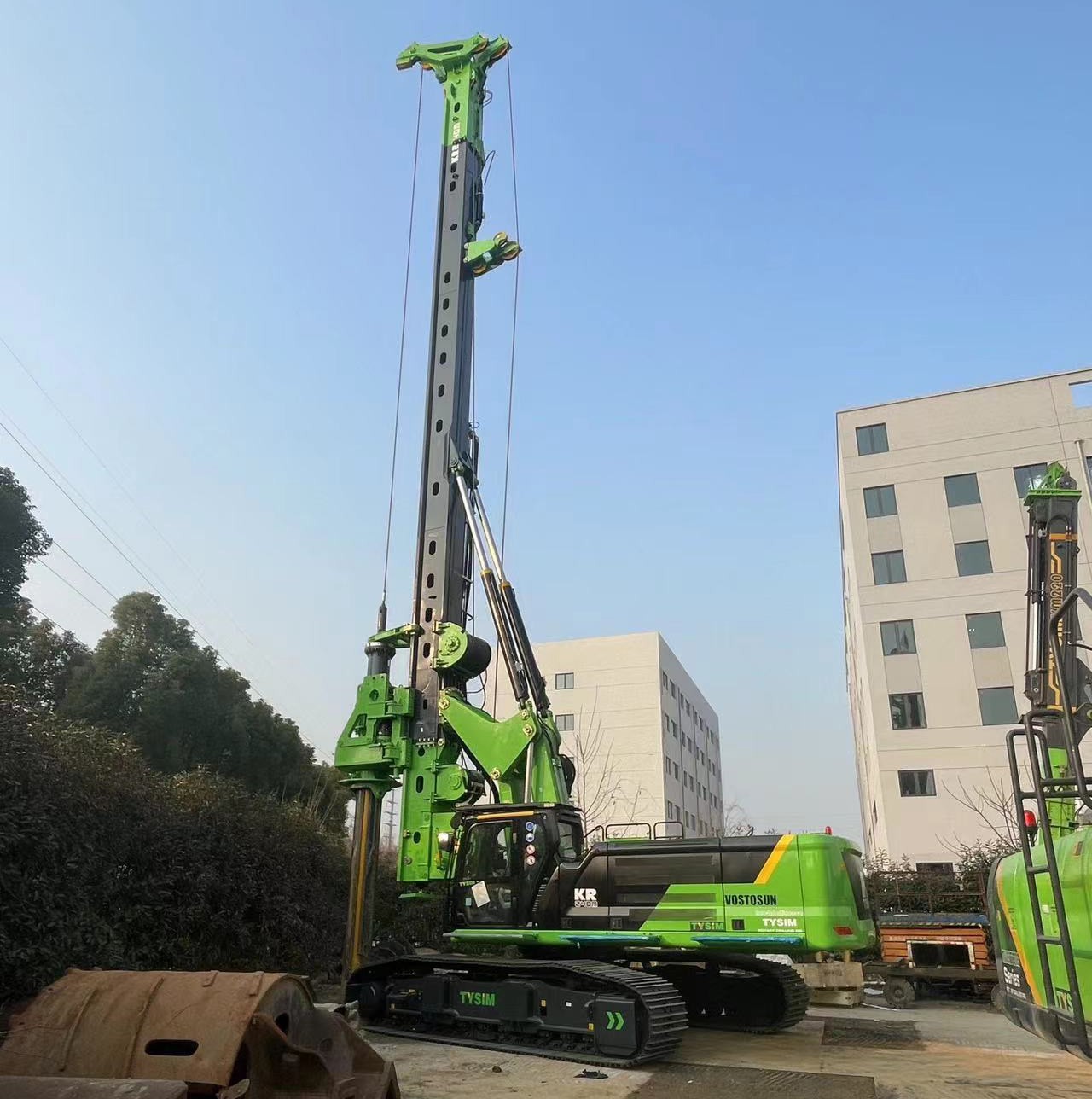

KR240M Piling rig

KR240M Piling rig on Caterpillar base CAT340

Name: KR240M Piling rig
Torque: 240 kN.m
Maximum depth:51m
Maximum diameter: 1700mm
Chassis: CAT340

INQUIRY

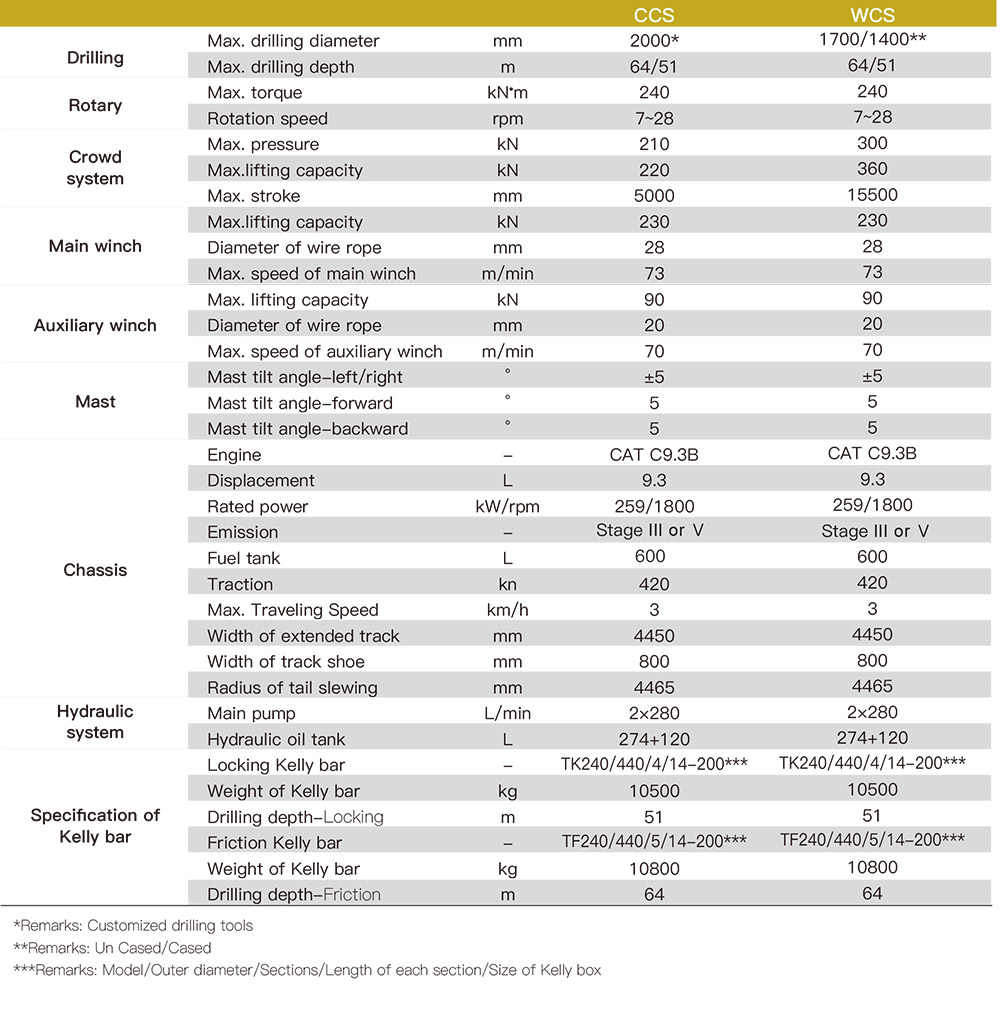

Specification:

KR240M Piling rig.jpg

Product Feature:

Advantages:

High Load Capacity: The KR240M is designed to support heavy loads, making it effective for large-scale construction projects where deep foundations are required.
Caterpillar Base Stability: The use of a Caterpillar base enhances stability and mobility on uneven terrain, allowing for consistent performance in challenging environments.
Versatile Piling Methods: This rig can perform various piling techniques, including rotary drilling, driven piles, and more, making it adaptable for different project needs.

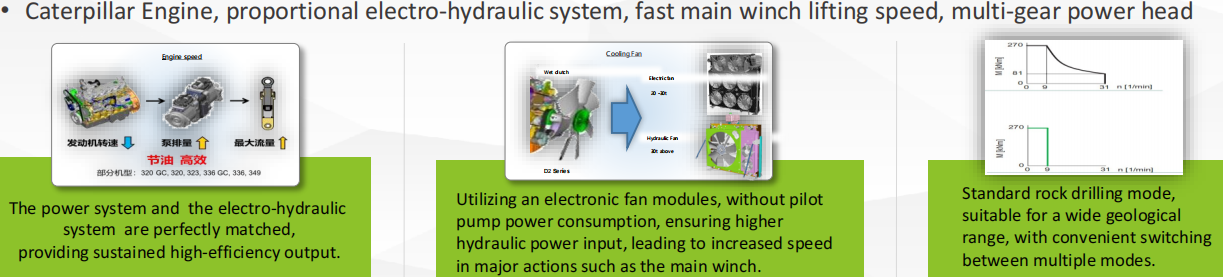

Powerful Performance: Equipped with a robust engine and hydraulic system, the KR240M provides high torque and efficient operation, which helps speed up the piling process.

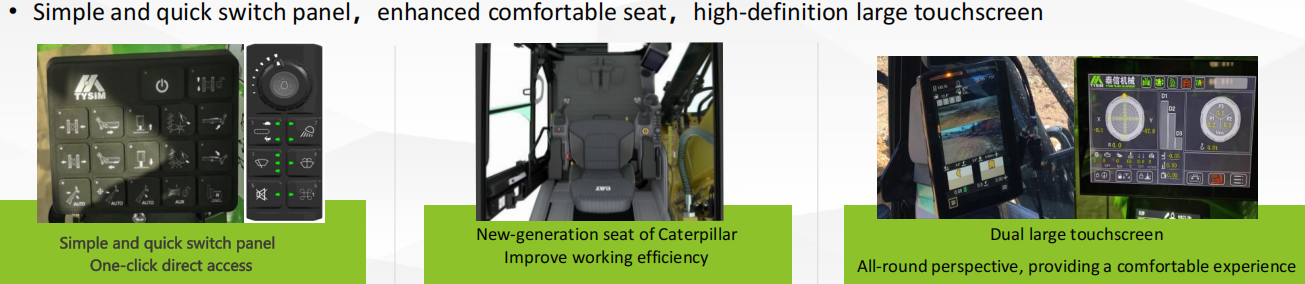

User-Friendly Technology: Advanced control systems often accompany the rig, enabling easier operation and monitoring, which can reduce operator error and improve efficiency.
Durability and Reliability: Built with strong materials and engineering, the KR240M is designed for long-term use under tough conditions, minimizing downtime and maintenance costs.
Cost-Effective Solutions: Its efficiency and effectiveness can lead to reduced operational costs and shorter project timelines, providing good return on investment.
