Mud Circulation System Desander Factory Price for Sale | High Efficiency Mud Recycling System

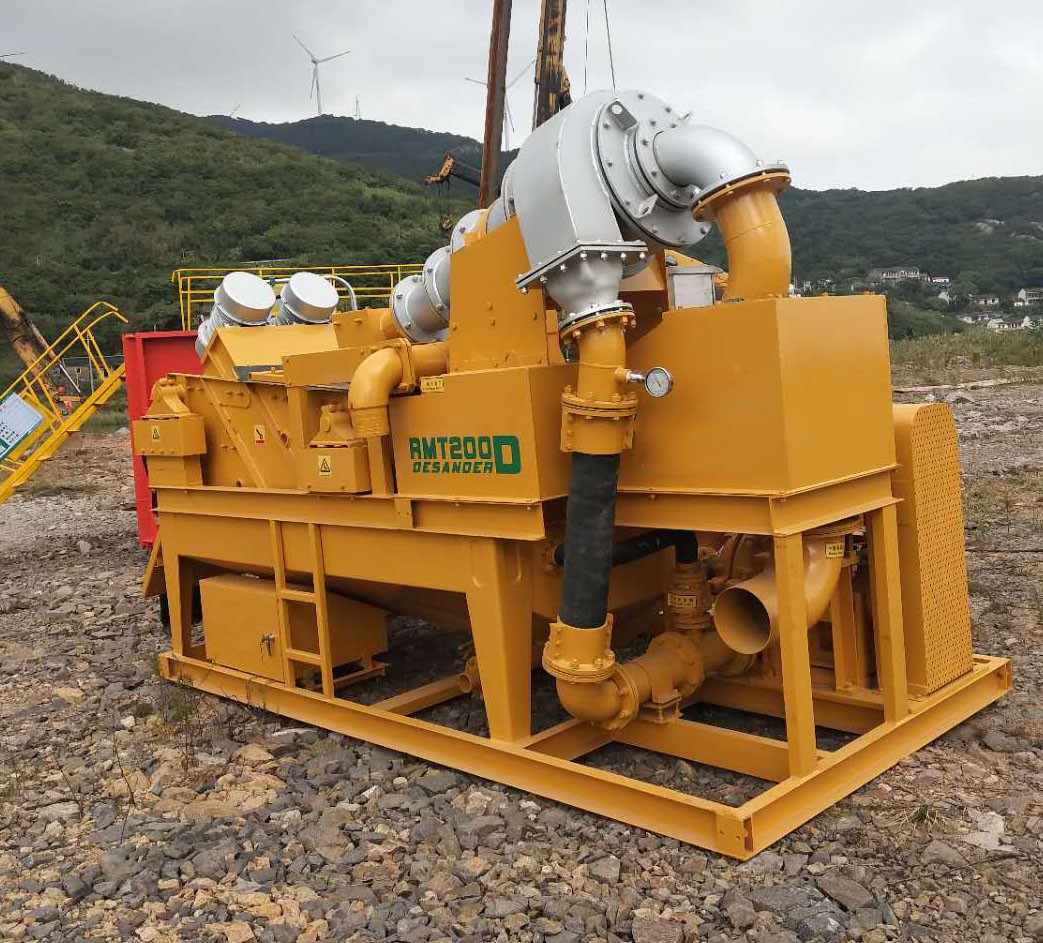

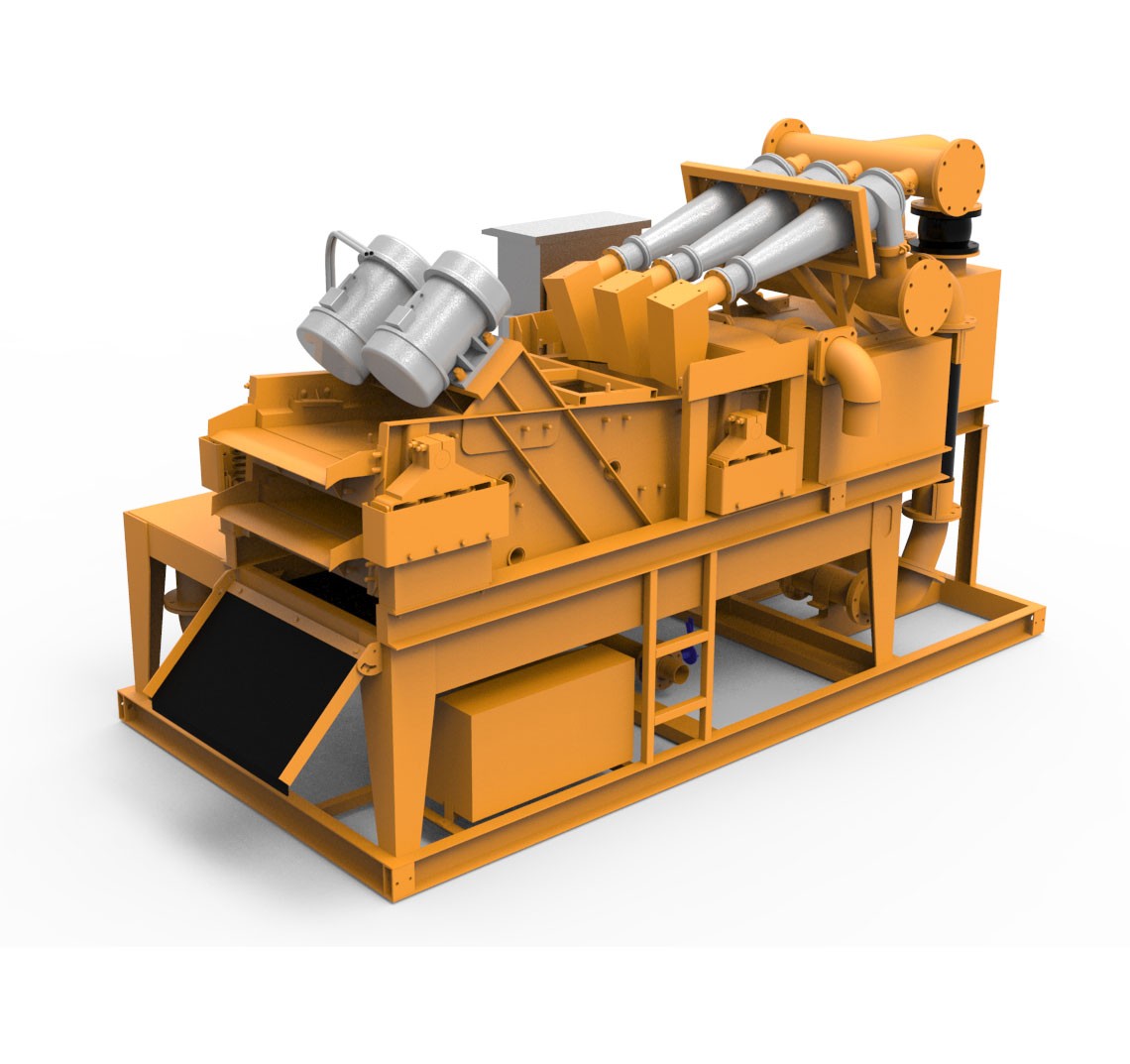

RMT200 Mud Desander with Capacity 200m³/h

Name: Mud Desander
Slurry Capacity: 200m³/h
Application: In the construction of bridge pile foundations and building pile foundations, the wall protection mud is processed. Through solid-liquid separation, the mud quality is controlled, the porosity is improved, and the amount and cost of slurry materials such as bentonite are reduced.

INQUIRY

Product Details

Product Tags

Specification:

Mud circulation system desander for bored pile slurry cleaning and mud recycling operations

Model	RMT200
Max. Slurry Capacity	200 m³/h
Cut Point d₅₀	0.04 mm
Total Power	48 kW
Motor Power ( Main pump )	45 kW
Motor Power ( Vibration motor )	1.5 kW× 2

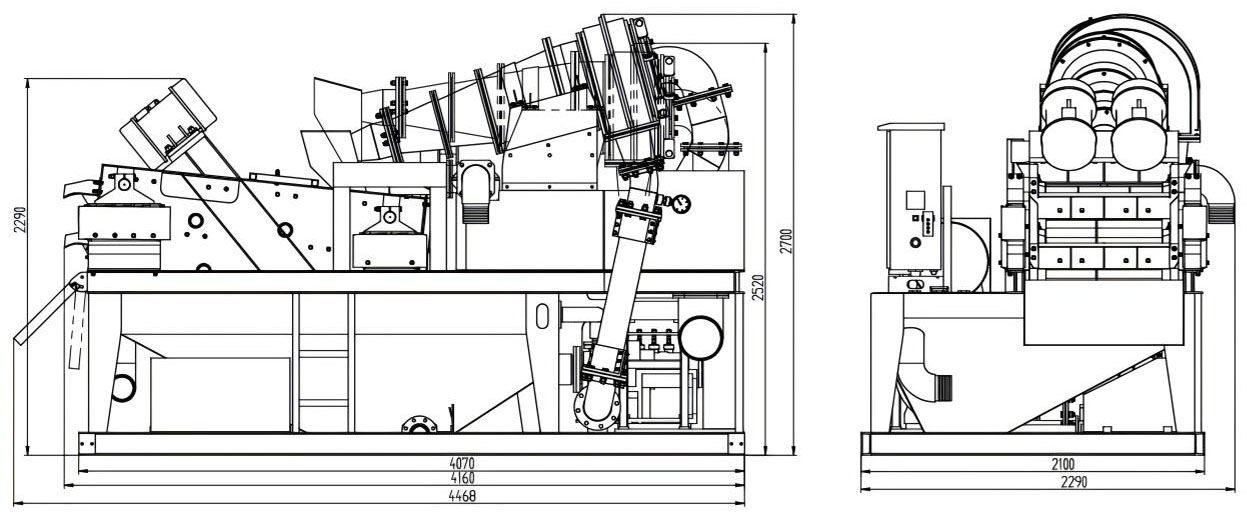

Transportation Dimension ( L×W×H ）	4.16×2.3×2.7 m
Working Dimension ( L×W×H ）	4.5×2.3×2.7 m
Total Weight	5300 kG

Feature:

The RMT200 Mud Desander is a high-capacity mud desander system and slurry separation equipment specially designed for foundation drilling, bored pile construction, rotary drilling rig operations, bridge piling, trenchless engineering, and civil construction projects. Equipped with an advanced hydrocyclone desander system and high-quality vibrating screens, it efficiently removes sand, gravel, and solid particles from drilling mud, ensuring stable slurry density, cleaner mud circulation, and improved borehole stability during construction. The heavy-duty high-chrome alloy slurry pump provides superior wear resistance and reliable slurry transfer, reducing maintenance costs and extending service life in harsh working conditions. Its intelligent internal circulation and automatic level control system prevent dry running damage and maintain continuous safe operation in long-hour drilling projects. The modular compact design allows easy transportation, quick installation, and minimal site space occupation, making it ideal for contractors managing multiple job sites. Wireless remote control enables one-key start and stop for convenient and safe operation, while the stainless steel electrical cabinet offers corrosion resistance and long-term durability. By recycling usable slurry, the RMT200 Mud Desander helps reduce bentonite consumption, lower waste slurry disposal costs, and minimize environmental impact. Widely used as a mud circulation system desander for bored pile drilling rigs, diaphragm wall projects, tunnel construction, HDD trenchless drilling, and deep foundation slurry treatment systems, the RMT200 is an ideal solution for contractors seeking reliable mud desander equipment, slurry cleaning systems, and hydrocyclone desander machines for modern construction projects worldwide.

Advantages:

1. High Efficiency Sand Removal Performance: The RMT200 Mud Desander uses an advanced hydrocyclone desander system combined with vibrating screen technology to quickly remove sand, gravel, and fine solids from drilling mud. This improves slurry quality, reduces sand content, and ensures cleaner mud circulation in bored pile and foundation drilling projects.

2. Improve Borehole Stability and Pile Quality: Clean slurry with stable density and viscosity helps maintain borehole wall stability during drilling. The mud circulation system desander reduces collapse risk, improves pile hole forming quality, and increases drilling success rate in soft soil, sand layers, and complex geological conditions.

3. Reduce Bentonite and Material Cost: By recycling reusable slurry, the RMT200 Slurry Desander significantly lowers bentonite consumption and fresh water usage. This helps contractors reduce daily material costs and improve project profitability in large-scale foundation construction slurry treatment systems.

4. Lower Waste Disposal Cost: The system separates solids from waste mud and reduces slurry volume before disposal. This decreases transportation frequency and sludge treatment expenses, making the mud desander equipment more economical for urban and remote construction sites.

5. Strong Wear Resistance and Long Service Life: The machine is equipped with a high-chrome alloy slurry pump, durable polyurethane screen panels, and robust structural components. These features provide excellent wear resistance and long service life in abrasive drilling mud environments.

6. Continuous Stable Operation: With intelligent internal circulation and automatic level control, the RMT200 Mud Desander system prevents dry running damage, stabilizes slurry flow, and supports long-hour continuous drilling operations without interruption.

7. Easy Transportation and Fast Installation: Its modular compact design reduces transport difficulty and saves site space. Contractors can quickly move and install the machine between projects, improving utilization of the mud recycling equipment.

8. Easy Operation and Labor Saving: Wireless remote control and user-friendly electrical systems make operation simple and efficient. One-key start and stop reduce labor intensity and improve safety on construction sites.

9. Environmental Protection and Green Construction: The RMT200 Hydrocyclone Desander supports slurry recycling, reduces waste discharge, and lowers environmental pollution. It helps contractors meet modern environmental standards in infrastructure and civil engineering projects.
