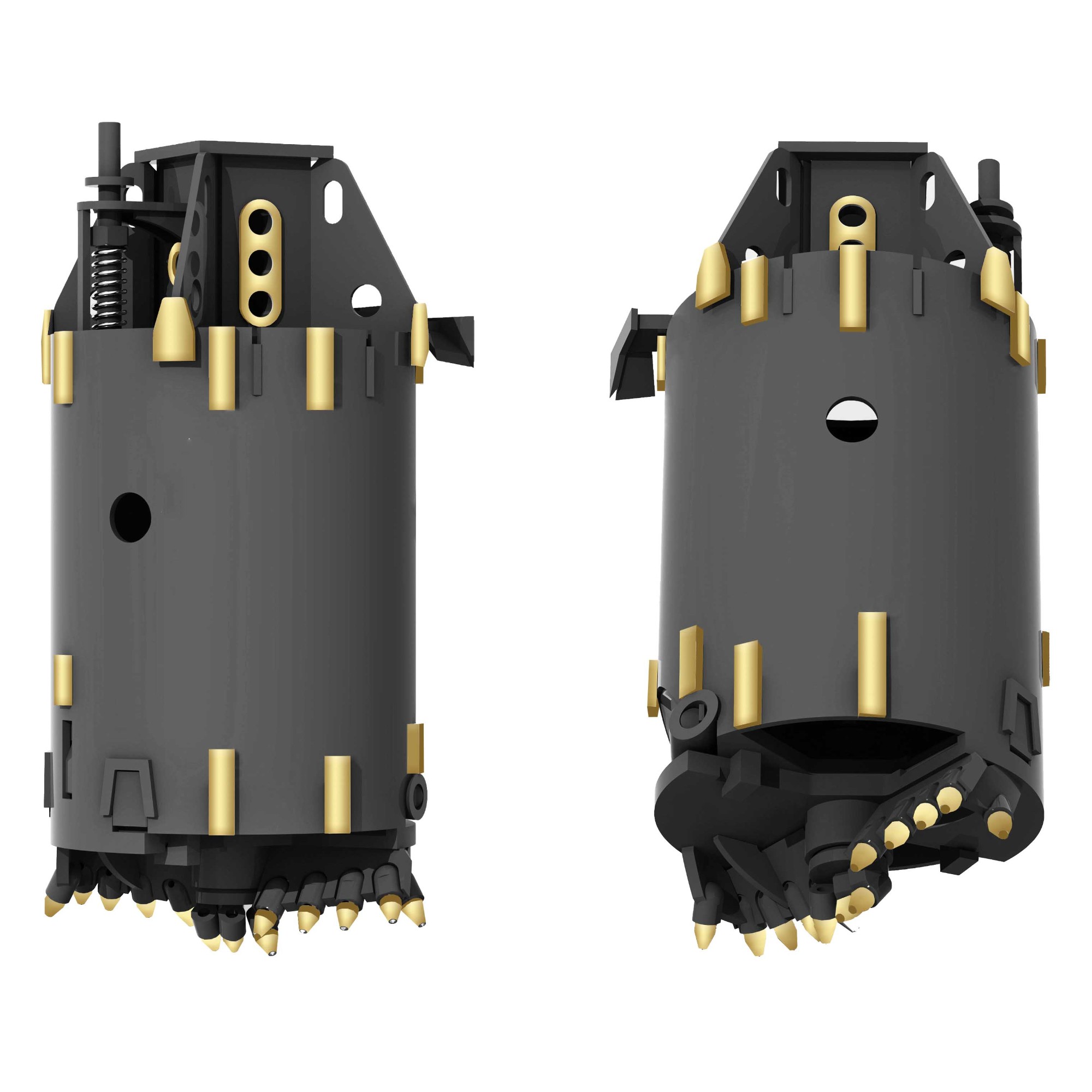

Rock Drilling Bucket for Piling Rig
Feature:

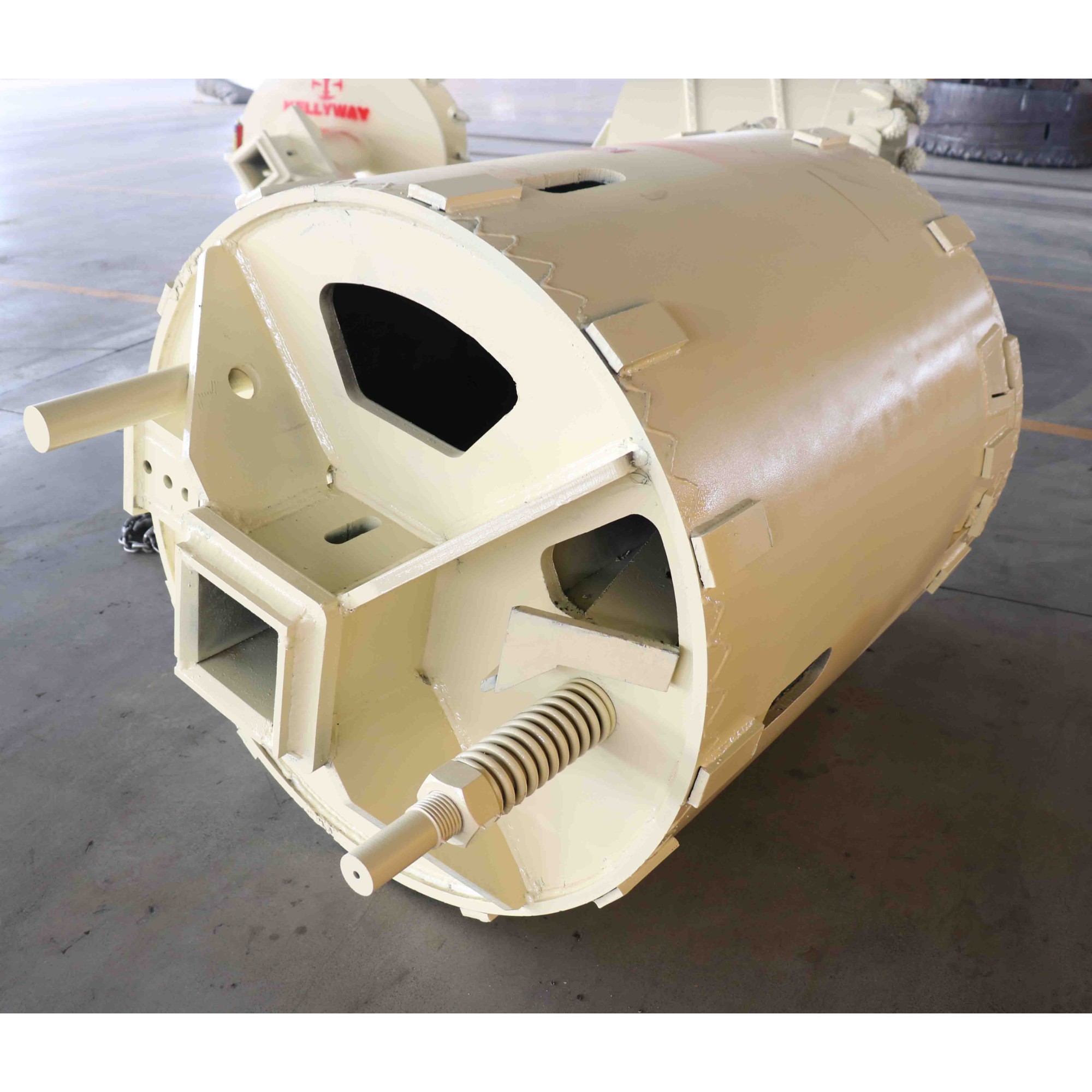

Manual or Semi-Automatic Bottom Opening System
The Rock Bucket for rotary drilling rigs is available with a manual or semi-automatic mechanical bottom opening system and features a built-in ventilation pipe for efficient drilling operations.Heavy-Duty Rock Drilling Design

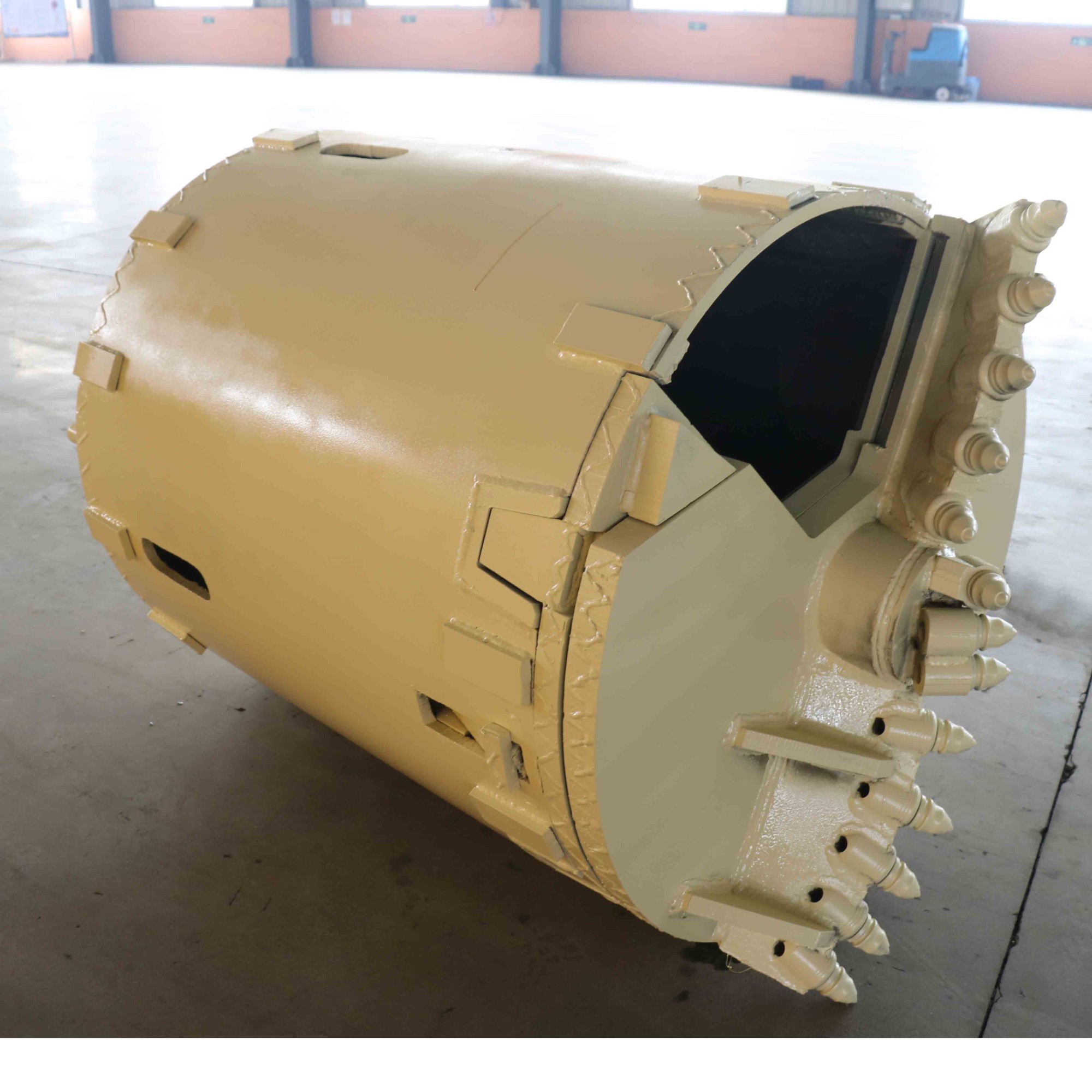

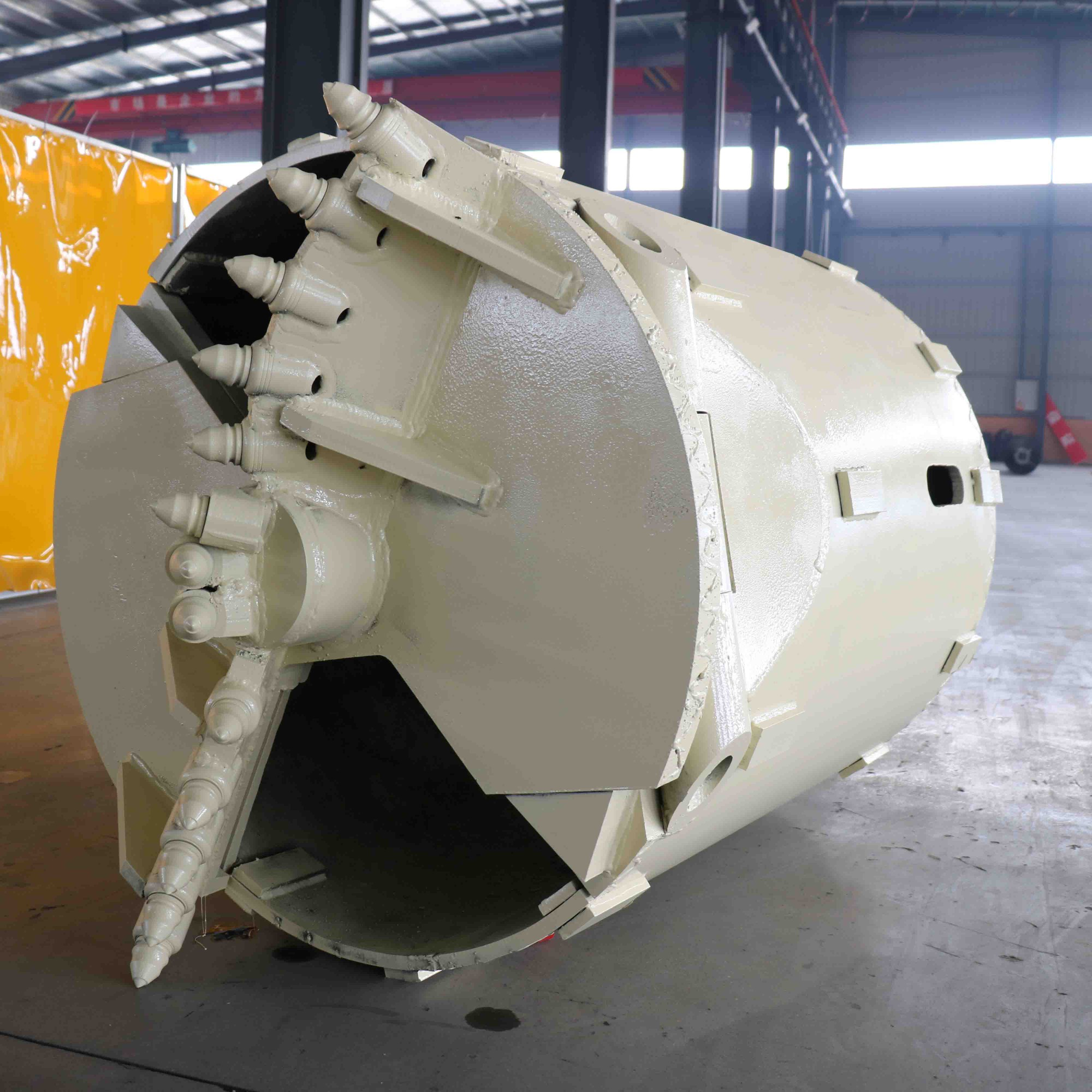

The Rock Drilling Bucket features a cast pilot with high-strength rock drilling teeth, an arc-shaped guide plate, optimized tooth arrangement, and a double unlocking system for reliable rock excavation.Staggered Rock Drilling Teeth Arrangement

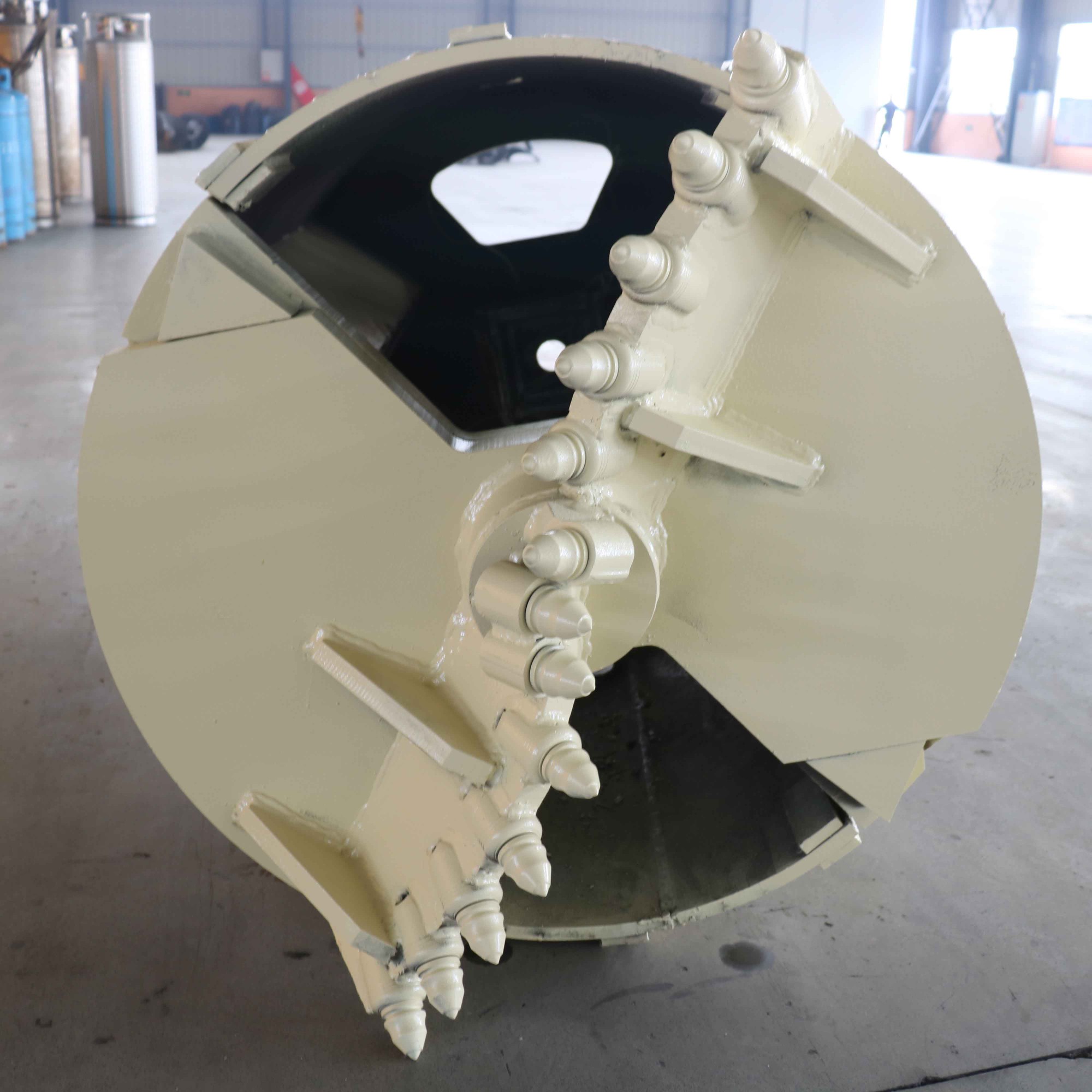

The Rotary Drilling Bucket adopts a staggered arrangement of rock drilling bits to improve cutting efficiency, drilling stability, and rock-breaking performance in demanding ground conditions.Flexible Bottom Opening Options
The Rock Bucket supports manual or automatic bottom opening configurations, providing greater flexibility for spoil discharge and different rotary drilling applications.Designed for Tough Ground Conditions
This Heavy Duty Rock Bucket is suitable for dense sand, gravel, pebbles, and highly or medium-weathered rock, making it ideal for foundation drilling, piling construction, and rotary drilling projects.
Advantages:
1. High-Strength Steel for Heavy-Duty Rock Buckets
We use high-quality raw materials from a leading steel manufacturer to ensure exceptional structural strength and durability for our Rock Bucket for Rotary Drilling Rigs, even in demanding drilling conditions.
2. Easy Operation for Efficient Rotary Drilling
The Rotary Drilling Bucket features a practical and user-friendly design, making operation easier and helping operators complete bored hole drilling and foundation piling work efficiently.
3. Superior Wear Resistance
Hard-facing strips are integrated into our Rock Drilling Bucket to provide excellent wear protection and extended service life when drilling in hard rock, gravel, and other abrasive ground conditions.
4. Optimized Design for Higher Drilling Efficiency
Excellent cylinder roundness, optimized drilling bit angles, and strategically positioned ventilation holes improve drilling efficiency and performance. The design makes the Rock Bucket suitable for rotary drilling, foundation drilling, and piling construction.
5. High-Quality Carbide Teeth and Pilot Bit
High-quality carbide bullet teeth, durable tooth holders, and RP-4 pilot bits provide strong cutting performance and reliable rock-breaking capability. These components help the Rock Drilling Tool meet demanding requirements for hard rock drilling.
6. Enhanced Unlocking and Protection Design
The Rock Bucket for Rotary Drilling incorporates a double support plate unlocking system and reinforced protection blocks, together with patented design innovations, to improve durability, operating reliability, and overall drilling performance.
7. Advanced Manufacturing and Quality Control
With a modern production workshop, advanced manufacturing equipment, and automated robot welding technology, we maintain high precision and consistent quality for our Rotary Drilling Tools, ensuring reliable performance for foundation drilling and piling projects.
Specification:
Pile Diameter （mm） | Shell Height (mm) | Shell Thickness (mm) | Fixed Bottom Thickness (mm) | Rotate Bottom Thickness (mm) | Teeth Quantity ( Piece ) | Weight (KG) |
⌀ 600 | 1200 | 20 | 40 | 40 | 6 | 750 |
⌀ 800 | 1200 | 20 | 40 | 50 | 11 | 1000 |
⌀ 900 | 1200 | 20 | 40 | 50 | 12 | 1250 |
⌀ 1000 | 1200 | 20 | 40 | 50 | 13 | 1400 |
⌀ 1200 | 1200 | 20 | 40 | 50 | 17 | 1700 |
⌀ 1500 | 1200 | 20 | 40 | 50 | 20 | 2350 |
⌀ 1600 | 1200 | 20 | 40 | 50 | 21 | 2550 |
⌀ 1800 | 1000 | 20 | 50 | 50 | 25 | 3150 |
⌀ 2000 | 800 | 20 | 50 | 50 | 26 | 3650 |
⌀ 2200 | 800 | 20 | 50 | 50 | 29 | 4500 |
⌀ 2500 | 800 | 25 | 50 | 50 | 32 | 5550 |
⌀ 2800 | 800 | 25 | 50 | 50 | 35 | 6550 |
⌀ 3000 | 800 | 30 | 50 | 50 | 47 | 8300 |
