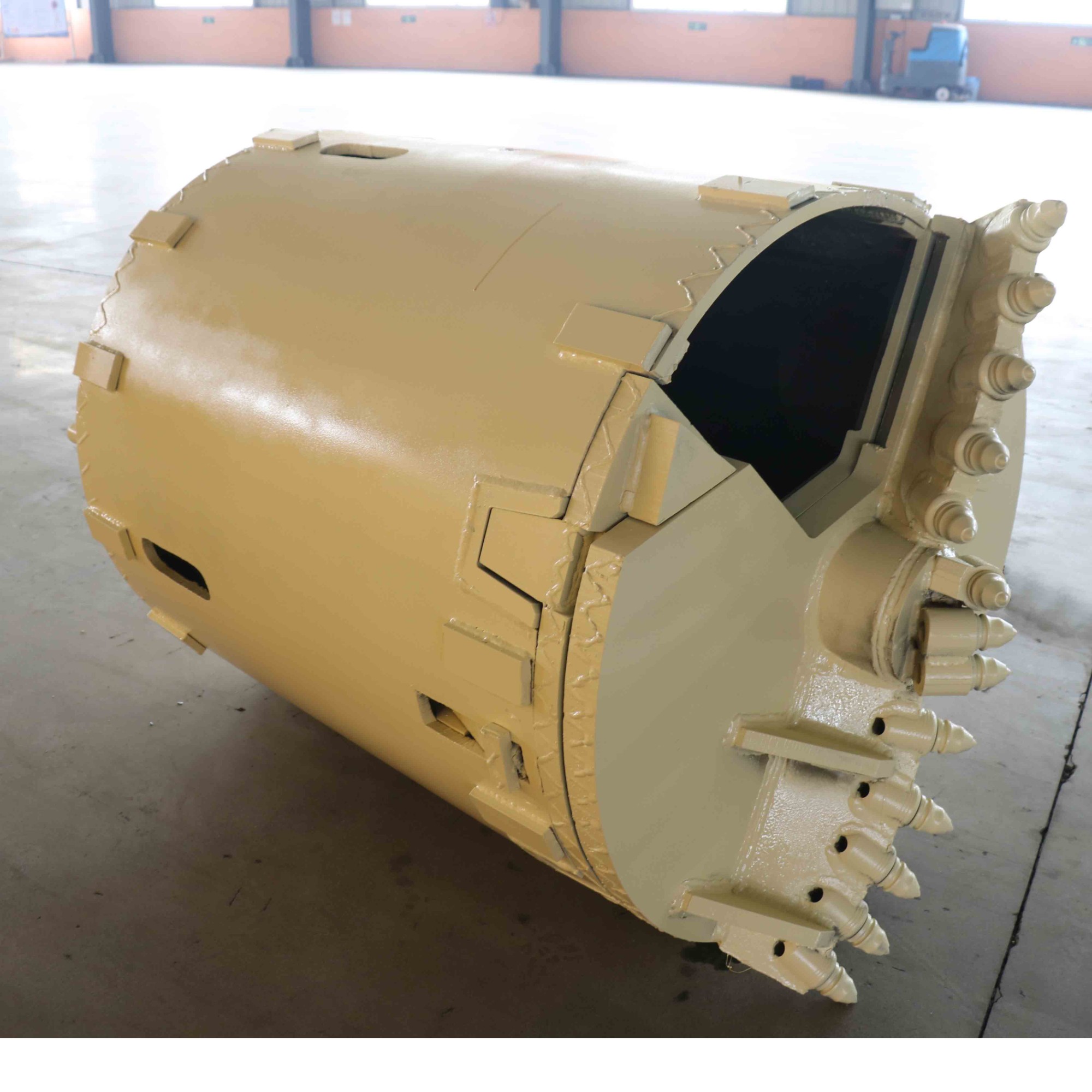

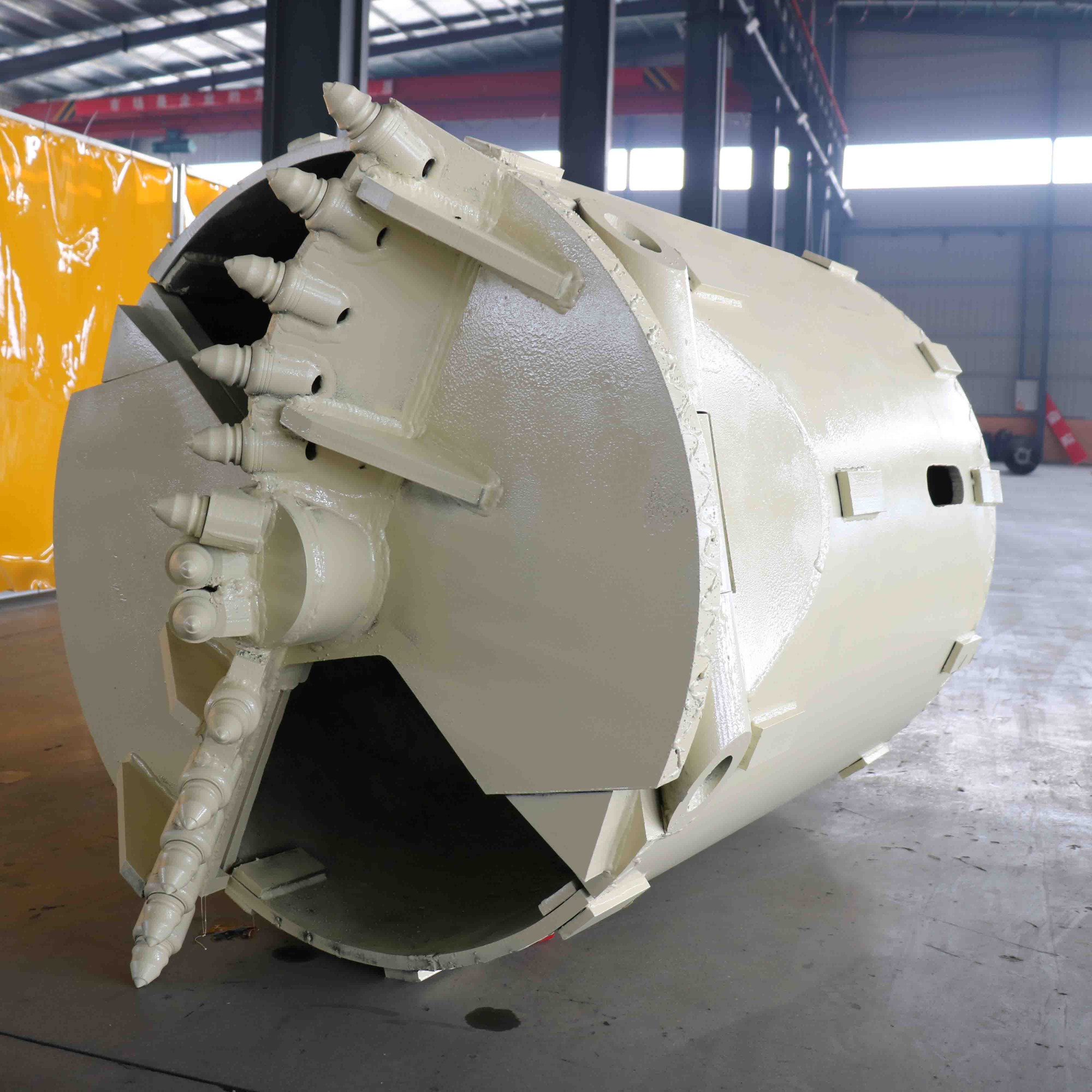

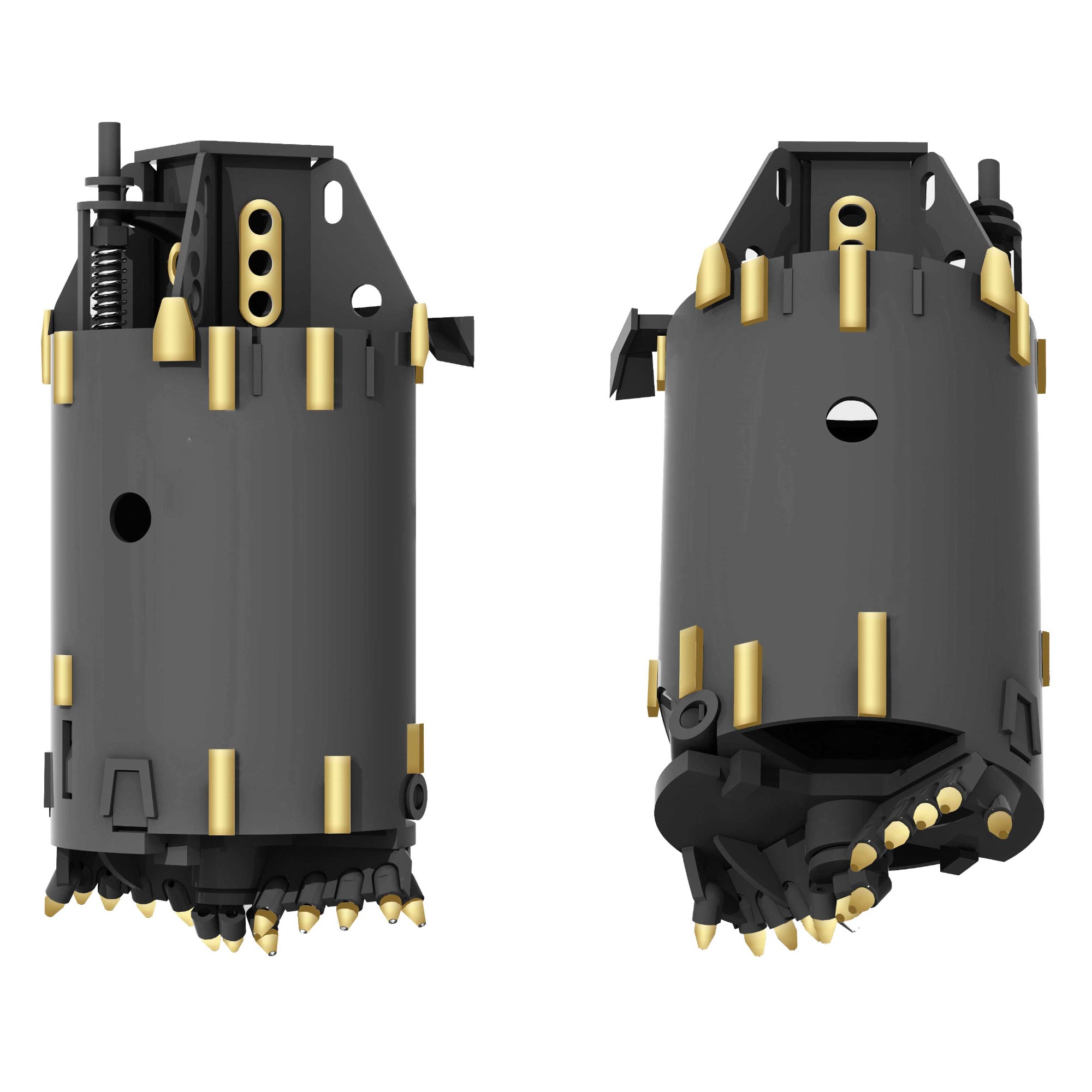

Rock Bucket with Drilling Bits

Rock Bucket with Bullet Bits

Name: Rock bucket, Rock drilling bucket, Double bottom rock bucket
Type: Conical type rock bucket / Straight type rock bucket
Steel Material: Q355B
Diameter: 600mm to 3000mm, customized according to your requirements
Kelly Box: 110×110, 130×130, 150×150, 200×200, (optional)
Application: For bored pile, Rotary drilling rig, Pile foundation and Piling rig.
Suit with the gravel, pebble, highly or medium weathered rock.

INQUIRY

Product Details

Product Tags

Feature:

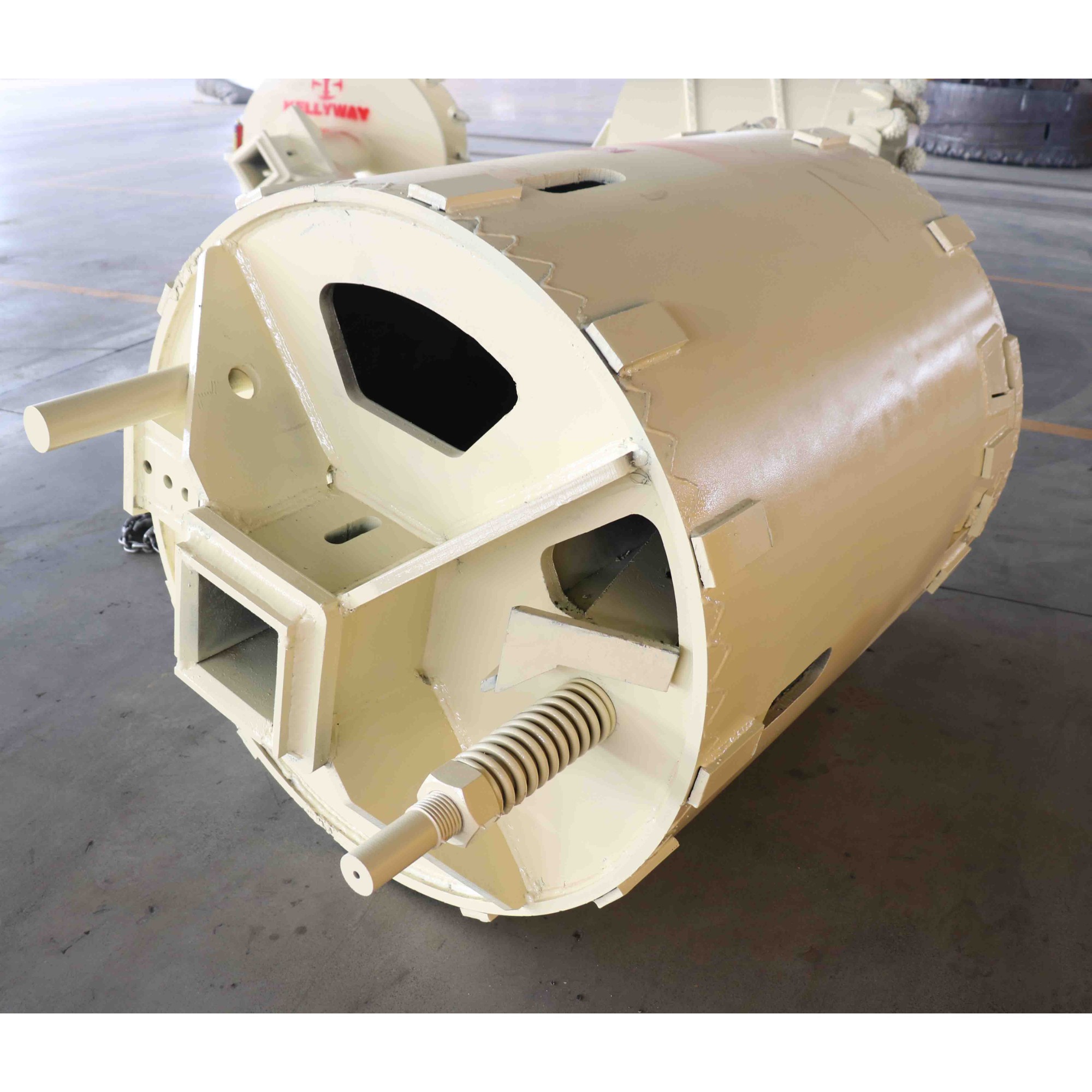

1. Option half-automatic or manual mechanic bottom open system, Built-in ventilation pipe.

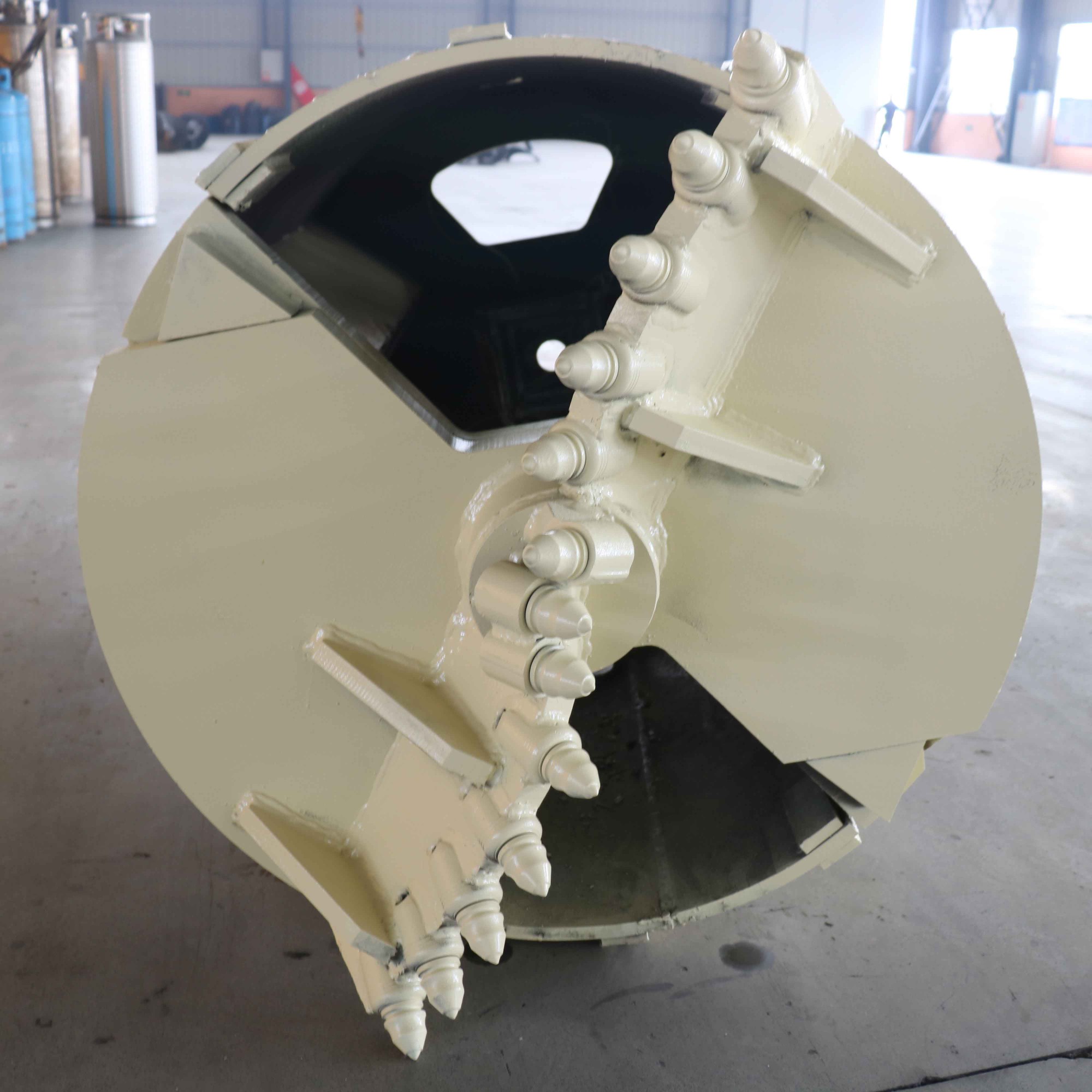

2. Cast pilot with rock drilling bits, arc guide plate teeth arrangement, double unlocking system.

3. Staggered arrangement of rock drilling bits.

4. Manual or auto open of bottom optional.

5. Suit with dense sand the gravel, pebble, highly or medium weathered rock.

Advantages:

1. Using raw materials from a top-leading raw steel factory ensures the exceptional structural strength of our drilling bucket.

2. Our drilling bucket offers a simple operation, making it much easier for the operator to accomplish the bored hole drilling job efficiently.

3. We integrate hard-facing strips into our drilling buckets for superior wear protection, ensuring high wear resistance in demanding conditions.

4. The excellent roundness of the cylinder, optimized angle of drilling bits, and strategically placed ventilation holes contribute to higher drilling efficiency in our drilling buckets.

5. We utilize high-quality carbide bullet teeth, teeth holders, and pilot bit RP-4 to ensure that the cutting strength of our drilling tools meets and exceeds design requirements.

6. Incorporating double support plate unlocking design and enhanced protection block design, among other patented innovations, our drilling buckets offer advanced features for enhanced performance and durability.

7. With a modern workshop, advanced production equipment, and automated robot welding technology, we guarantee a higher quality standard for our drilling tools, ensuring precision and reliability in every product.

Specification:

Pile Diameter （mm）	Shell Height (mm)	Shell Thickness (mm)	Fixed Bottom Thickness (mm)	Rotate Bottom Thickness (mm)	Teeth Quantity ( Piece )	Weight (KG)
⌀ 600	1200	20	40	40	6	750
⌀ 800	1200	20	40	50	11	1000
⌀ 900	1200	20	40	50	12	1250
⌀ 1000	1200	20	40	50	13	1400
⌀ 1200	1200	20	40	50	17	1700
⌀ 1500	1200	20	40	50	20	2350
⌀ 1600	1200	20	40	50	21	2550
⌀ 1800	1000	20	50	50	25	3150
⌀ 2000	800	20	50	50	26	3650
⌀ 2200	800	20	50	50	29	4500
⌀ 2500	800	25	50	50	32	5550
⌀ 2800	800	25	50	50	35	6550
⌀ 3000	800	30	50	50	47	8300
