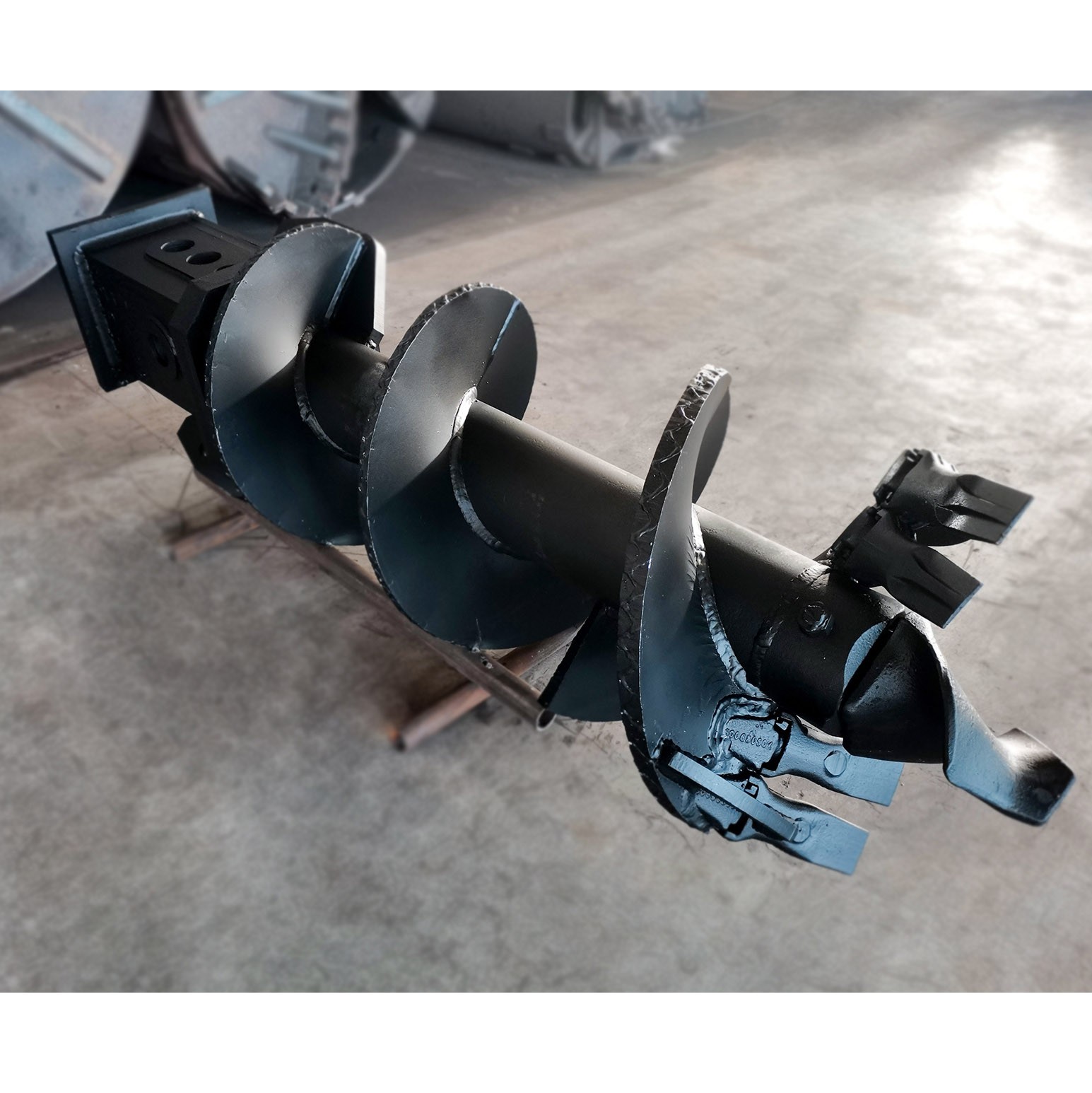

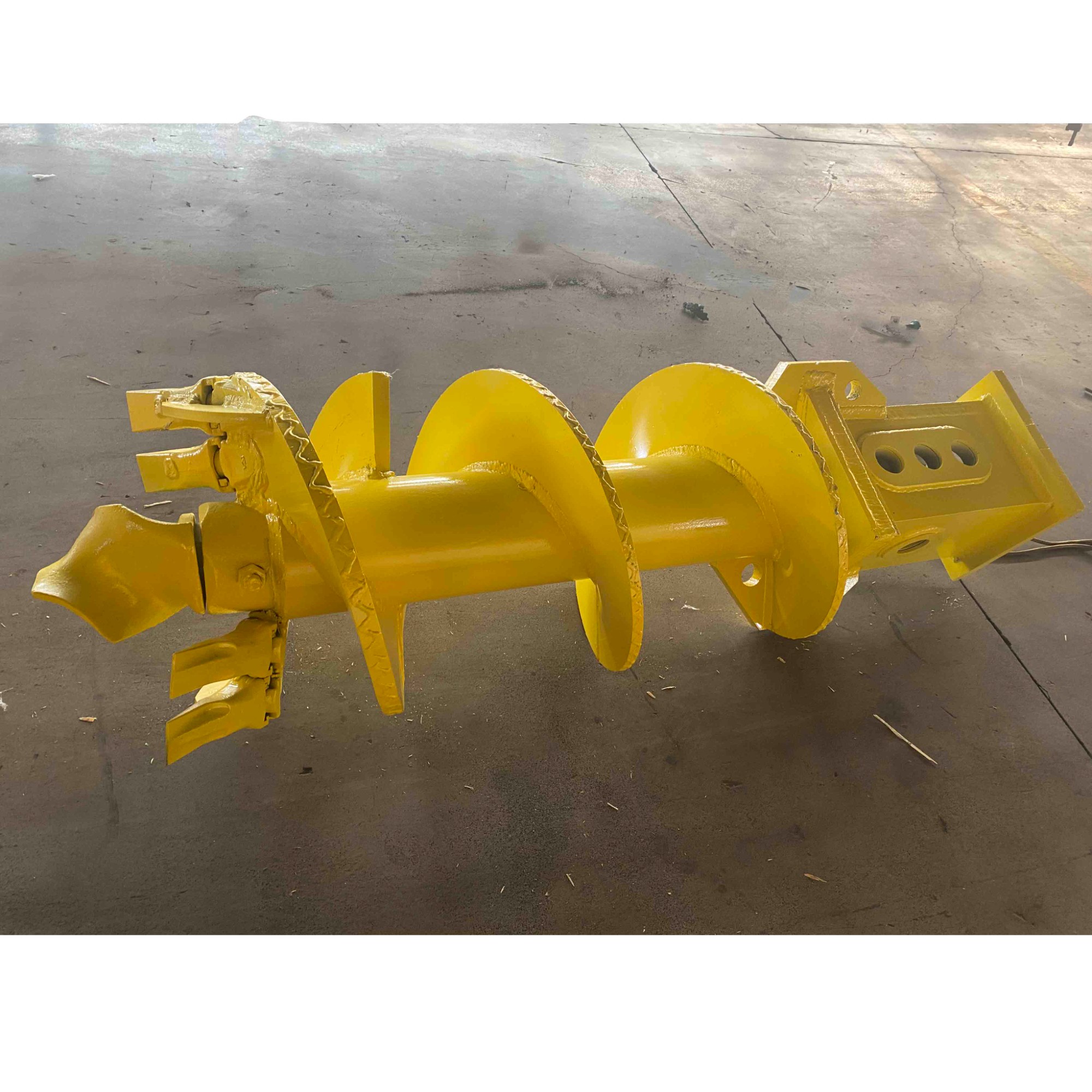

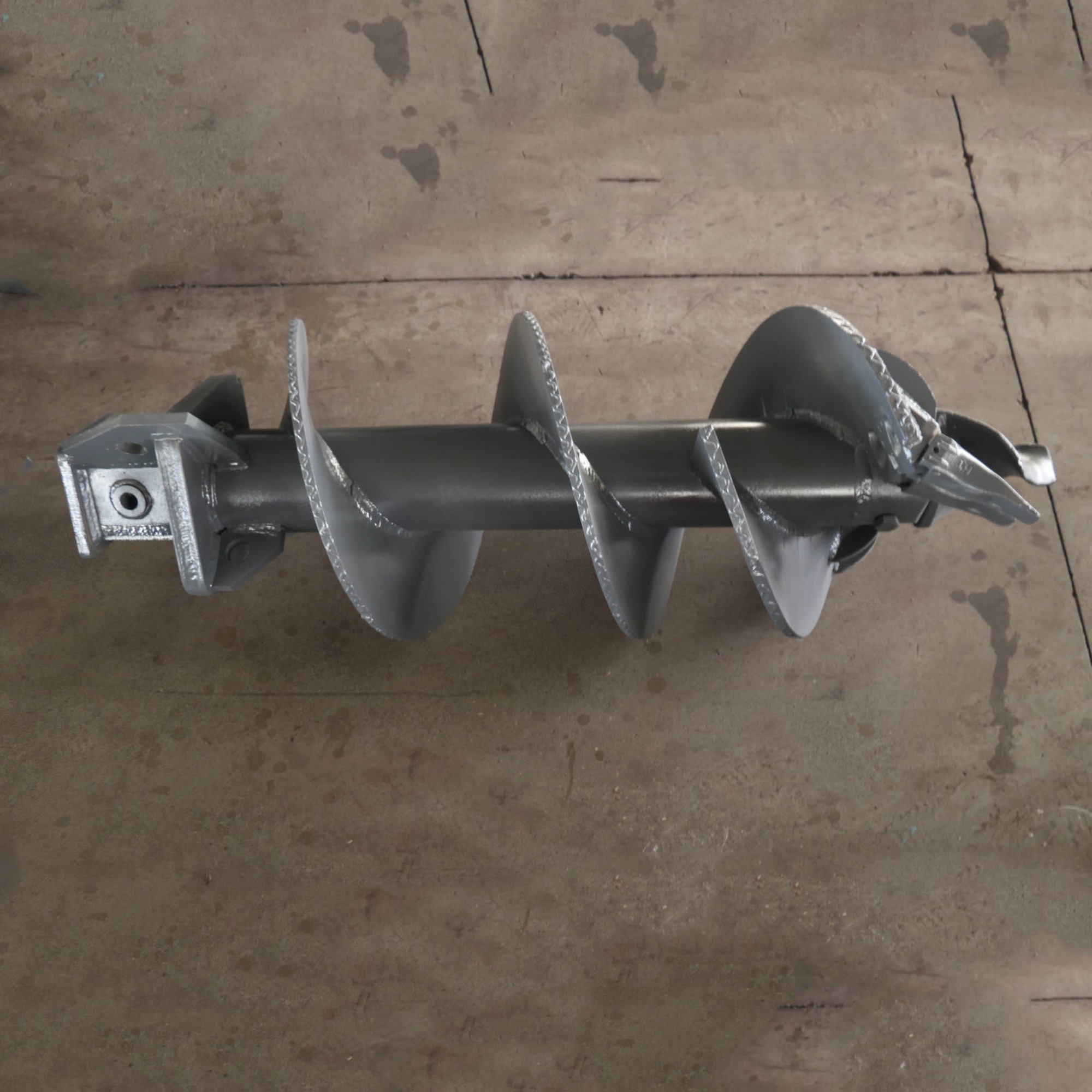

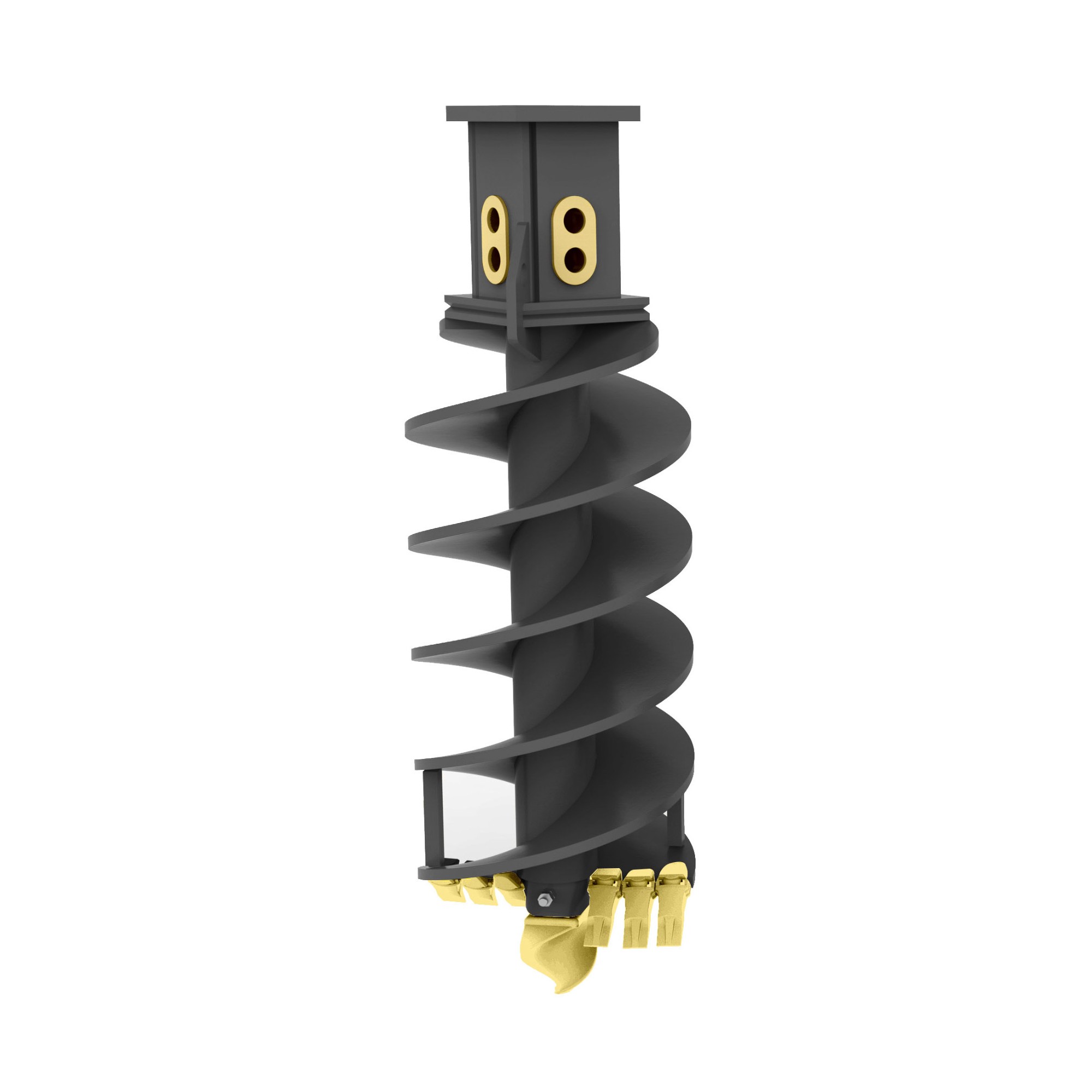

Soil Auger, Soil Drilling Auger, Flat Soil Auger

Flat Soil Auger

Name: Soil Auger, Soil Drilling Auger, Flat Soil Auger
Type: Single flight soil auger
Steel Material: Q355B
Diameter: 600mm to 1600mm, customized according to your requirements
Kelly Box: 110×110, 130×130, 150×150, 200×200, (optional)
Application: For bored pile, Rotary drilling rig, Pile foundation and Piling rig.
Suit with the clay, sand and soft stiff silt

INQUIRY

Product Details

Product Tags

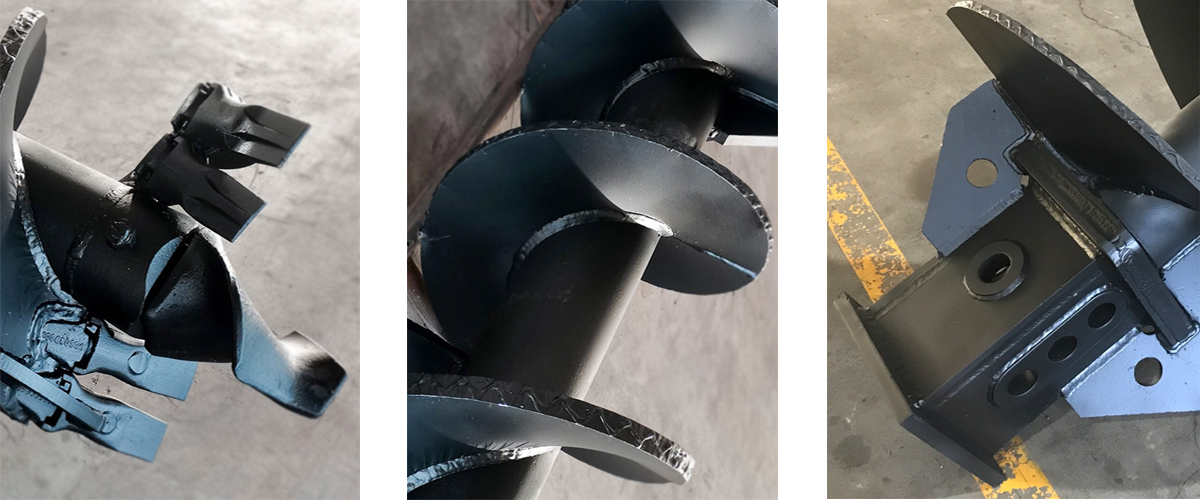

Feature:

1. Design as straight type, better for carry clay.

2. A fish-tail pilot is a specialized tool used in drilling operations for accurate positioning of the drill bit. It's particularly useful when drilling through challenging formations or when precision is essential.

3. Hard facing strips on the flights for wear protection.

4. Suit with the clay, sand and soft stiff silt.

Advantages:

1. Using raw materials from a top-leading raw steel factory ensures the exceptional structural strength of our drilling bucket.

2. Our drilling auger offers a simple operation, making it much easier for the operator to accomplish the bored hole drilling job efficiently.

3. We integrate hard-facing strips into our drilling auger for superior wear protection, ensuring high wear resistance in demanding conditions.

4. Optimizing the angles of drilling teeth is indeed crucial for maximizing cutting efficiency in drilling operations.

5. We utilize high-quality carbide bullet teeth, teeth holders, and pilot bit RP-4 to ensure that the cutting strength of our drilling tools meets and exceeds design requirements.

6. With a modern workshop, advanced production equipment, and automated robot welding technology, we guarantee a higher quality standard for our drilling tools, ensuring precision and reliability in every product.

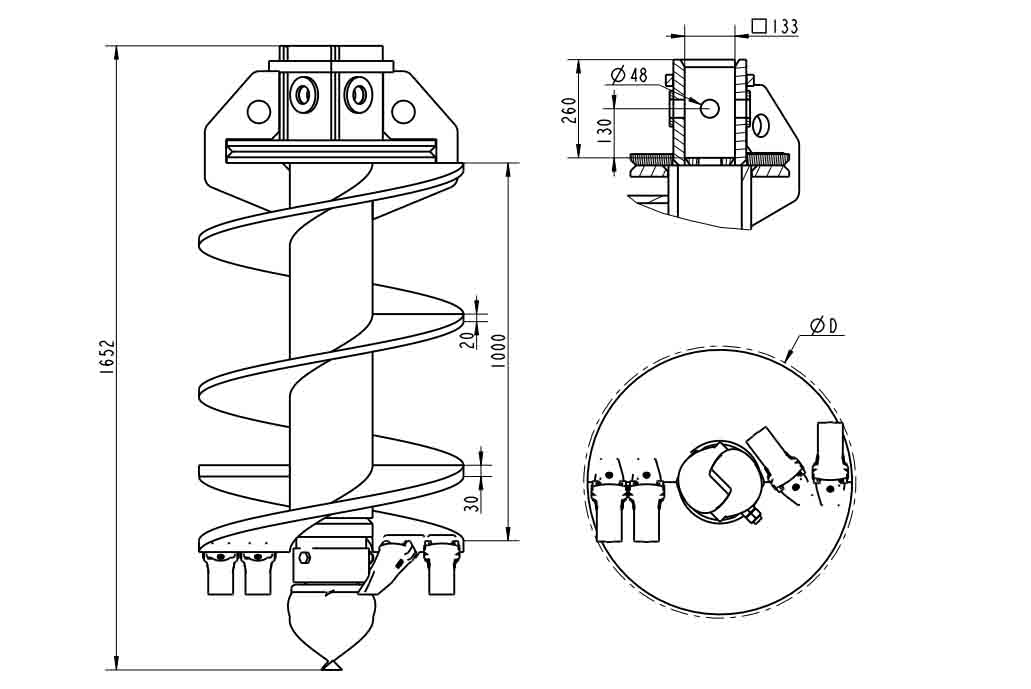

Specification:

Pile Diameter (mm)	Spiral Height(mm)	Spiral Pitch(mm)	Spiral Thickness (mm)	Teeth Quantity ( Piece )	Weight (KG)
⌀ 600	1500	600+400	30+20	4	530
⌀ 800	1500	600+400	30+20	5	620
⌀ 900	1500	600+500	30+20	6	650
⌀ 1000	1500	600+600	30+20	7	700
⌀ 1200	1500	600+600	30+30	9	950
⌀ 1500	1500	600+600	30+30	12	1250
⌀ 1600	1500	600+600	30+30	17	1480
