Rock Auger, Rock Drilling Auger, Straight type Rock Auger

Flat Rock Auger

Name: Rock Auger, Rock Drilling Auger, Straight type Rock Auger

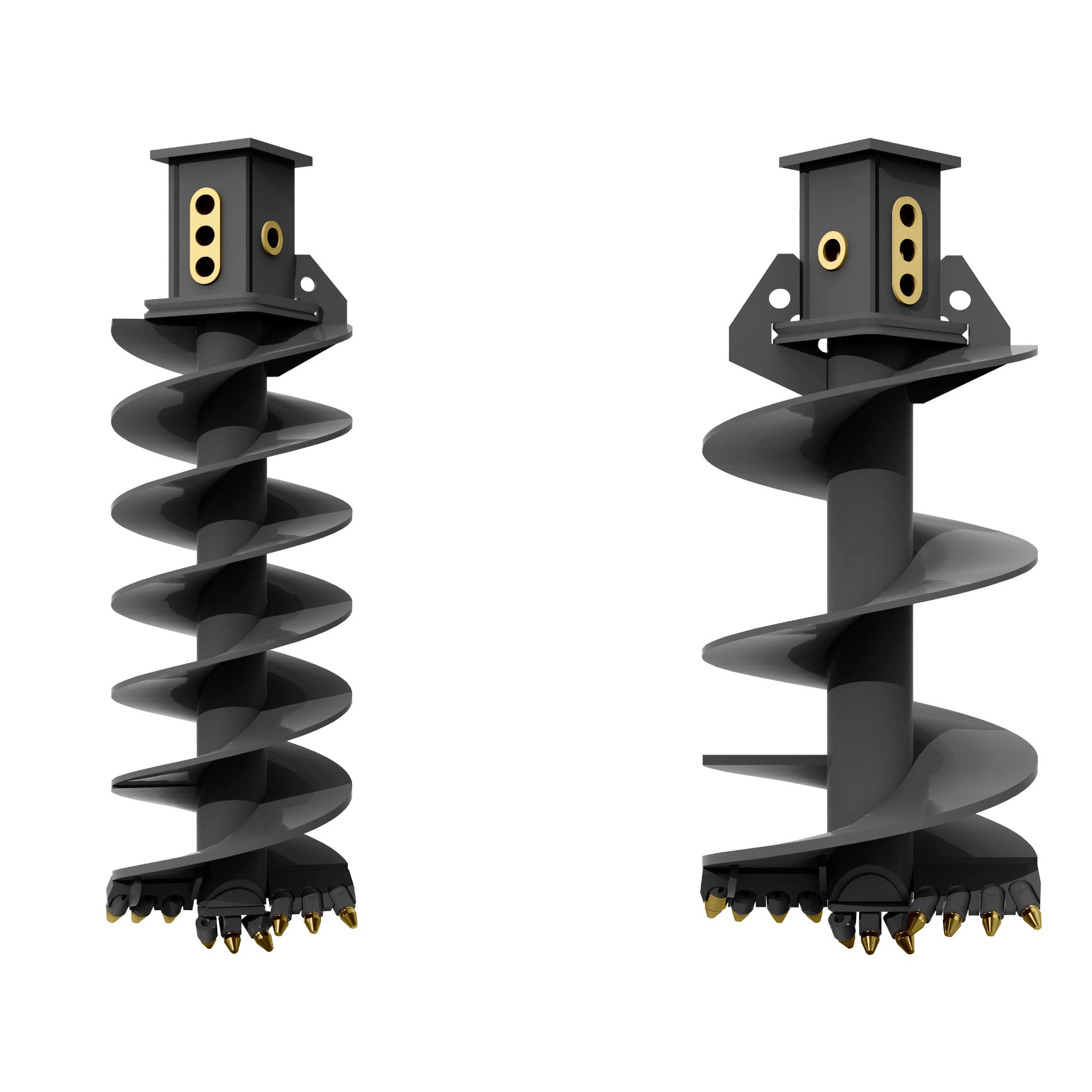

Type: Double flight rock auger / Single flight rock auger
Steel Material: Q355B
Diameter: 600mm to 2000mm, customized according to your requirements
Kelly Box: 110×110, 130×130, 150×150, 200×200, (optional)

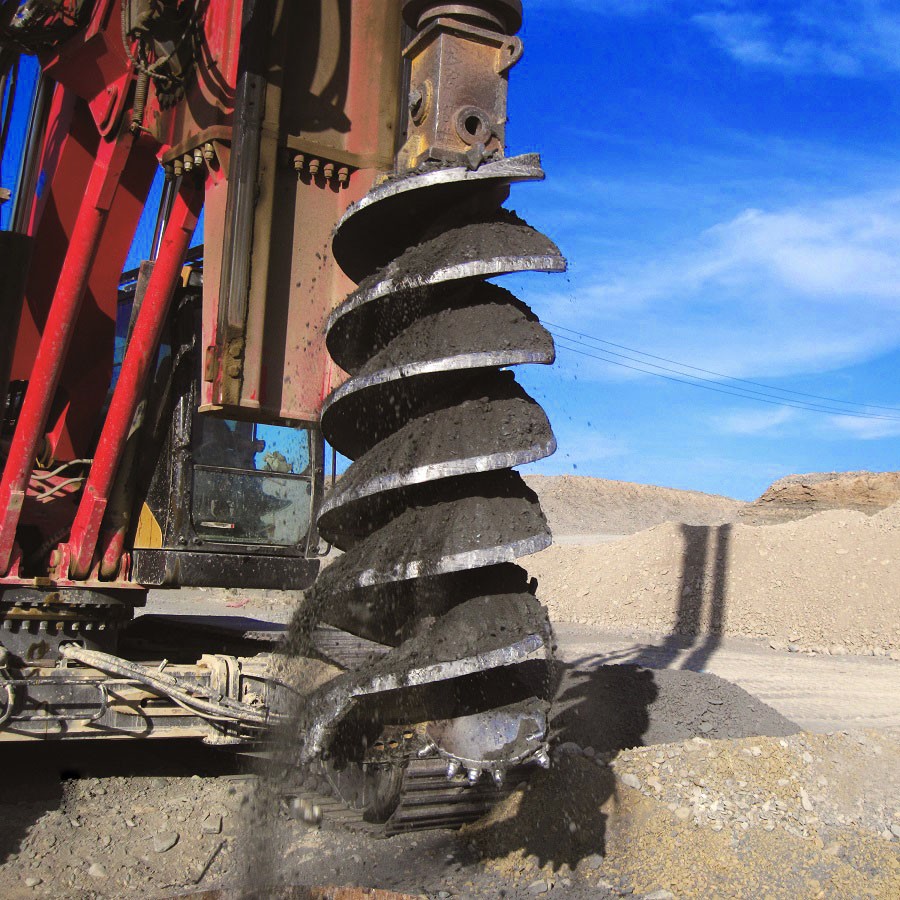

Application: For bored pile, Rotary drilling rig, Pile foundation and Piling rig.
Suit with the clay, dray soil, high-weathered layer, gravel

INQUIRY

Product Details

Product Tags

Feature:

1. Design as straight type, better for carry soil.

2. Double cutter bearing uniform force, can avoid inclined hole

3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil.

4. Cast pilot with rock drilling bits.

5. Staggered arrangement of rock drilling bits.

6. Suit with the clay, dry soil, high-weathered layer and gravel.

Advantages:

1. Using raw materials from a top-leading raw steel factory ensures the exceptional structural strength of our drilling bucket.

2. Our drilling bucket offers a simple operation, making it much easier for the operator to accomplish the bored hole drilling job efficiently.

3. We integrate hard-facing strips into our drilling auger for superior wear protection, ensuring high wear resistance in demanding conditions.

4. The excellent roundness of the cylinder, optimized angle of drilling bits, and strategically placed ventilation holes contribute to higher drilling efficiency in our drilling rock auger.

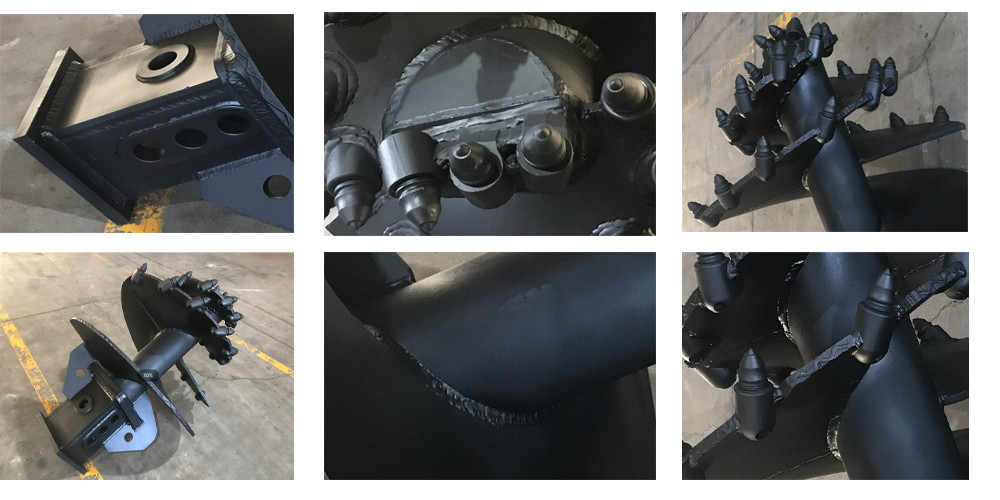

5. We utilize high-quality carbide bullet teeth, teeth holders, and pilot bit RP-4 to ensure that the cutting strength of our drilling tools meets and exceeds design requirements.

6. With a modern workshop, advanced production equipment, and automated robot welding technology, we guarantee a higher quality standard for our drilling tools, ensuring precision and reliability in every product.

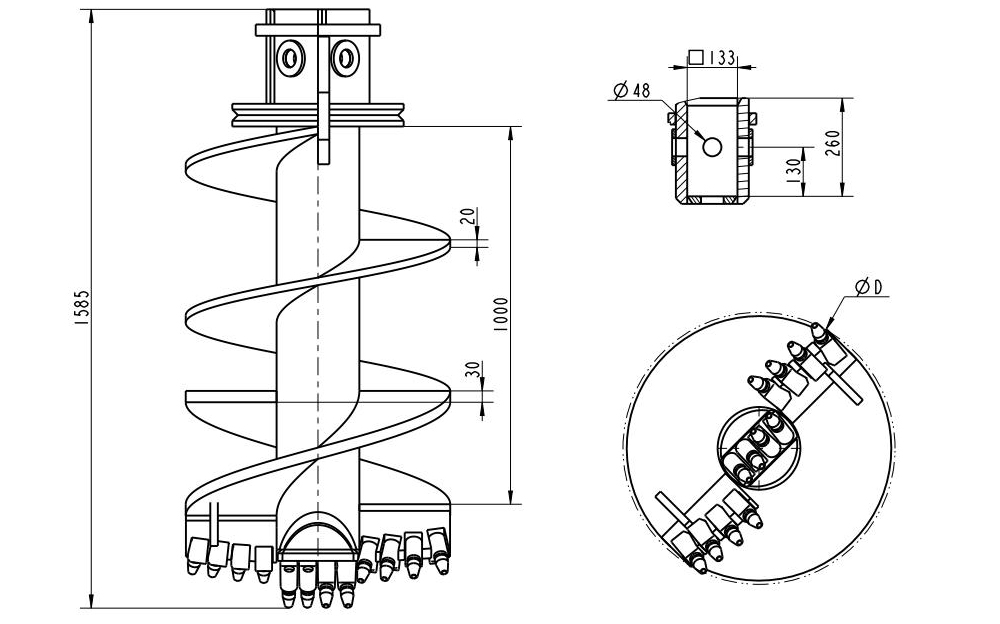

Specification:

Pile Diameter (mm)	Spiral Height(mm)	Spiral Pitch(mm)	Spiral Thickness (mm)	Teeth Quantity ( Piece )	Weight (KG)
⌀ 600	1500	600+400	30+20	6	550
⌀ 800	1500	600+400	30+20	9	800
⌀ 900	1500	600+500	30+20	10	850
⌀ 1000	1500	600+600	30+20	11	900
⌀ 1200	1500	600+600	30+30	13	1250
⌀ 1500	1500	600+600	30+30	16	1750
⌀ 1600	1500	600+600	30+30	17	1900
⌀ 1800	1500	600+600	30+30	21	2600
⌀ 2000	1500	600+600	30+30	22	3050
