Mud Desander for Bored Pile Works | Foundation Slurry Recycling Equipment

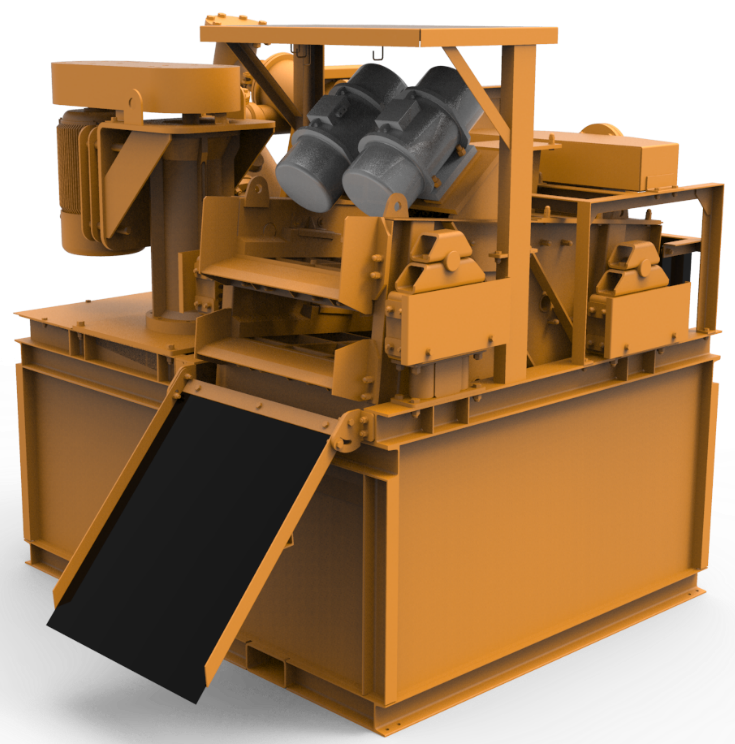

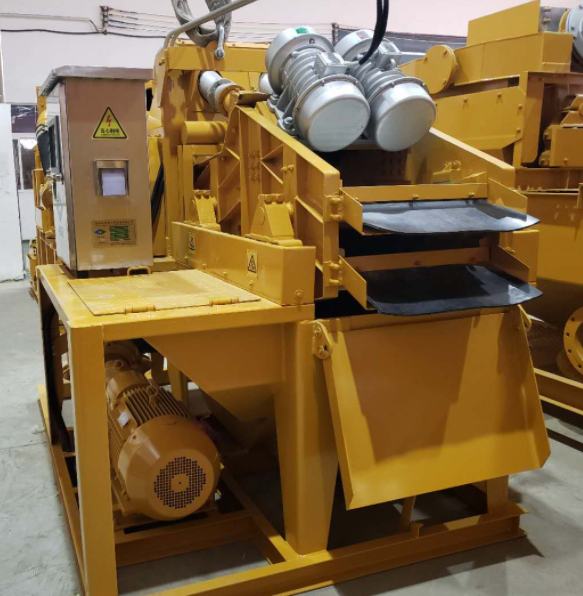

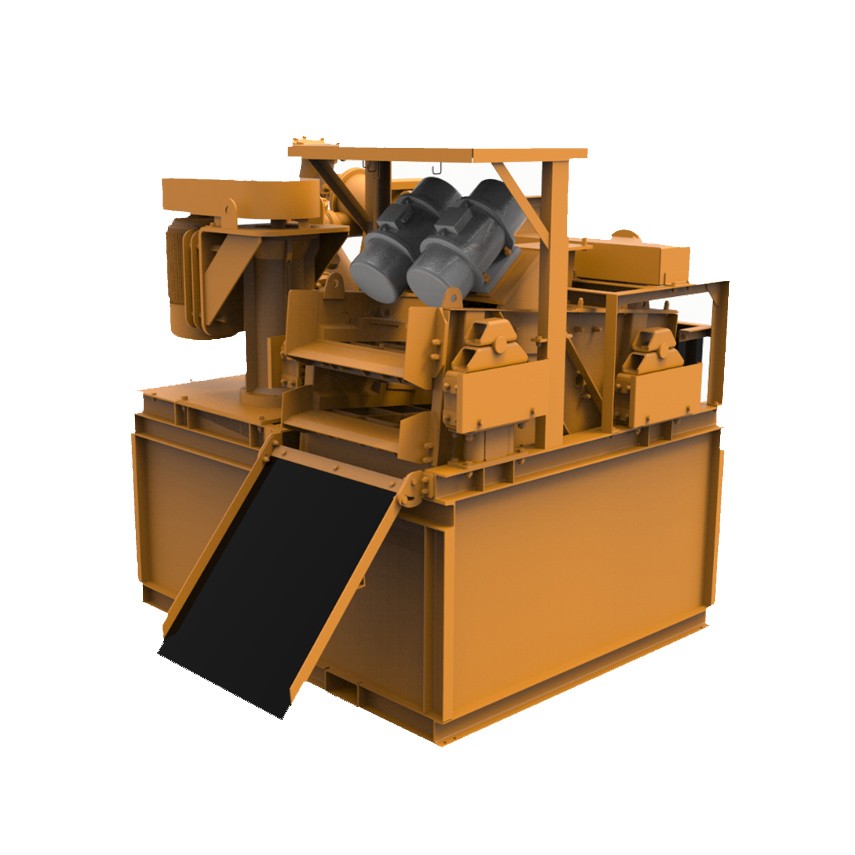

RMT50 Slurry Desander with Capacity 50m³/h

Name: Slurry Desander
Slurry Capacity: 50m³/h
Application: In the construction of bridge pile foundations and building pile foundations, the wall protection mud is processed. Through solid-liquid separation, the mud quality is controlled, the porosity is improved, and the amount and cost of slurry materials such as bentonite are reduced.

INQUIRY

Product Details

Product Tags

Specification:

Model	RMT50
Max. Slurry Capacity	50 m³/h
Cut Point d₅₀	0.04 mm
Total Power	17 kW
Motor Power ( Main pump )	15 kW
Motor Power ( Vibration motor )	1.0 kW× 2

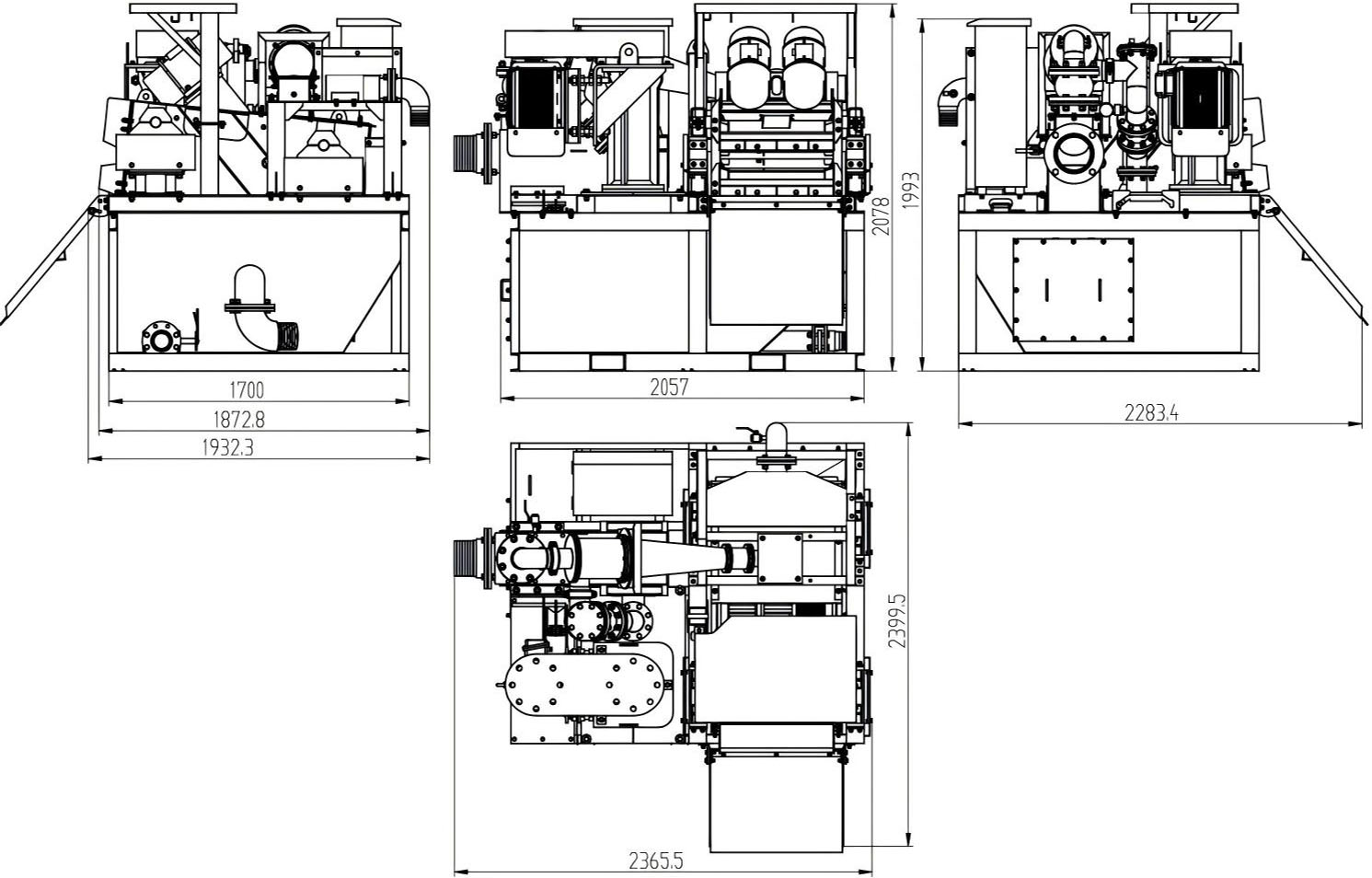

Transportation Dimension ( L×W×H ）	1.9×2×2.1 m
Working Dimension ( L×W×H ）	2.45×2×2.1 m
Total Weight	2400 kG

Feature:

The RMT Slurry Desander Series is a high-performance mud desander system and slurry separation equipment designed for bored pile foundation construction, rotary drilling rig operations, trenching foundation works, and trenchless engineering projects.

As a professional slurry desander manufacturer solution, it is widely used to control sand content, remove fine particles, and improve drilling fluid quality during foundation construction. The system ensures efficient solid-liquid separation of drilling mud, making it an essential part of modern foundation slurry treatment systems.

The hydrocyclone desander unit effectively separates solid particles from slurry, discharges dewatered waste residue, and enables continuous slurry recycling. This significantly improves pile hole formation efficiency, borehole stability, and drilling performance, while reducing mud consumption and operational costs.

By integrating advanced mud desander technology for bored pile projects, the RMT series helps contractors achieve cleaner slurry circulation, lower environmental impact, and higher construction efficiency. It is widely applied in deep foundation engineering, bridge construction, tunnel projects, and trenchless drilling operations.

The RMT Slurry Desander system is an ideal solution for contractors seeking reliable slurry cleaning equipment, hydrocyclone desander systems, and mud recycling equipment for foundation construction projects worldwide.

Advantages:

1. Durable Slurry Desander Pump: The Slurry Desander system is equipped with a high-chrome alloy slurry pump, providing excellent wear resistance, stable performance, and high-efficiency slurry transfer for continuous drilling mud cleaning and slurry separation operations in foundation construction projects.

2. Internal Circulation and Level Control System: The Mud Desander equipment includes an intelligent internal circulation and automatic level control system, effectively preventing dry running damage and ensuring safe, stable, and continuous operation in slurry treatment and hydrocyclone desander systems.

3. Modular Compact Design: The RMT Slurry Desander system adopts a modular design structure, making it easy to transport, quick to install, and space-saving. It is ideal for bored pile construction, rotary drilling rig projects, and foundation engineering applications.

4. High-Quality Screening System: The equipment uses durable polyurethane slotted screen plates, providing high wear resistance, anti-blocking performance, and efficient solid-liquid separation in drilling slurry and mud desander systems.

5. Wireless Remote Control Operation: The Hydrocyclone Desander system is equipped with wireless remote control, allowing one-key start and stop operation. This improves safety, convenience, and efficiency for operators in construction slurry cleaning and mud recycling projects.

6. Stainless Steel Control Cabinet: The electrical control cabinet of the Slurry Desander machine is made of stainless steel, offering corrosion resistance, long service life, and stable control performance for foundation construction slurry treatment systems.

Product Details:
